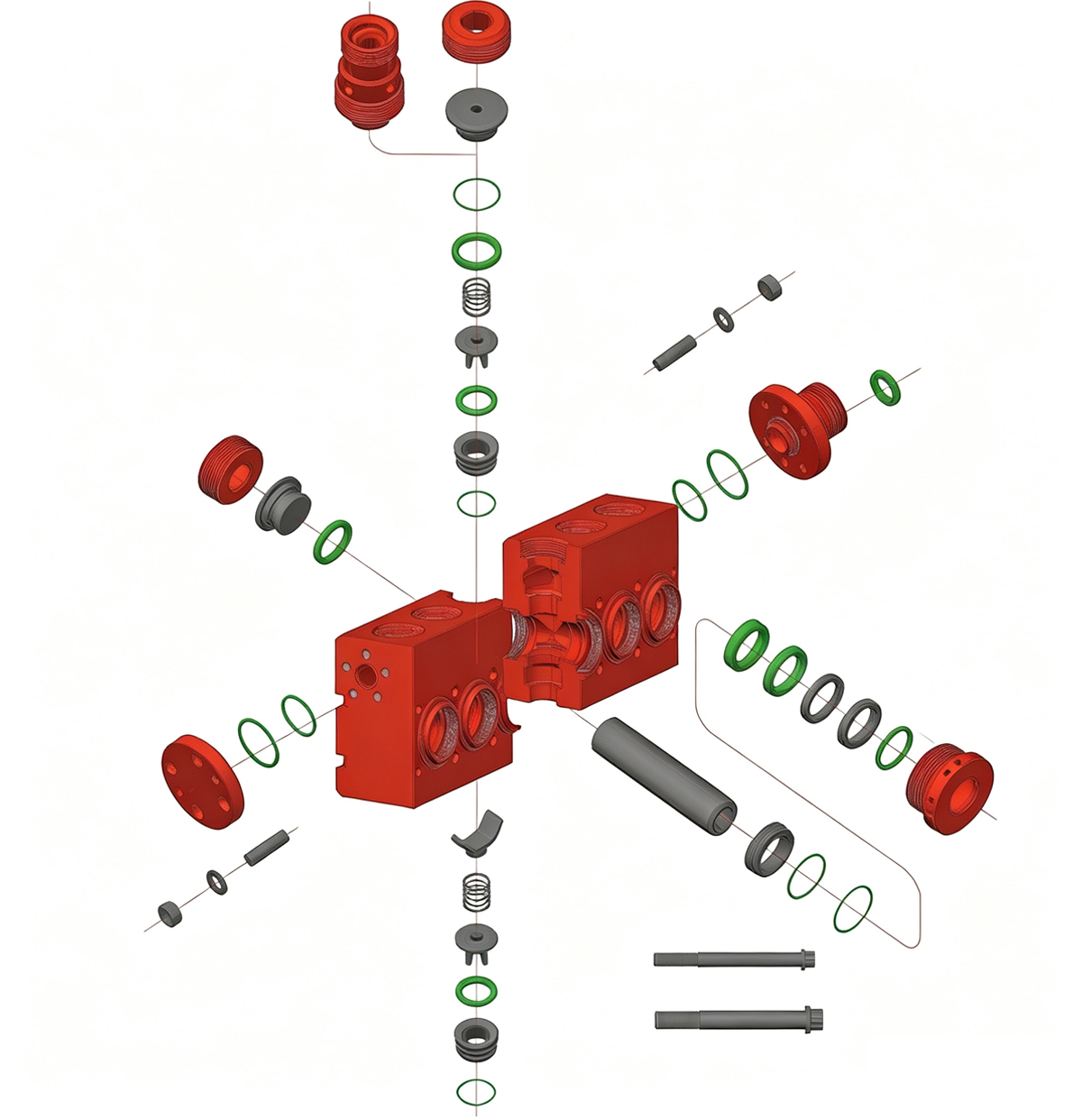

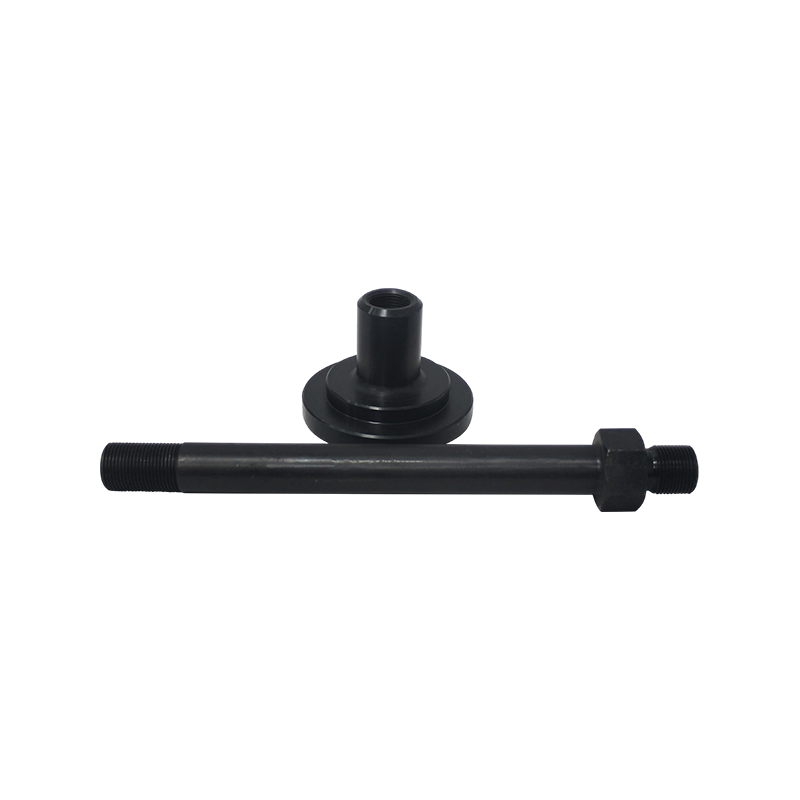

TWS600S Fluid End Assembly

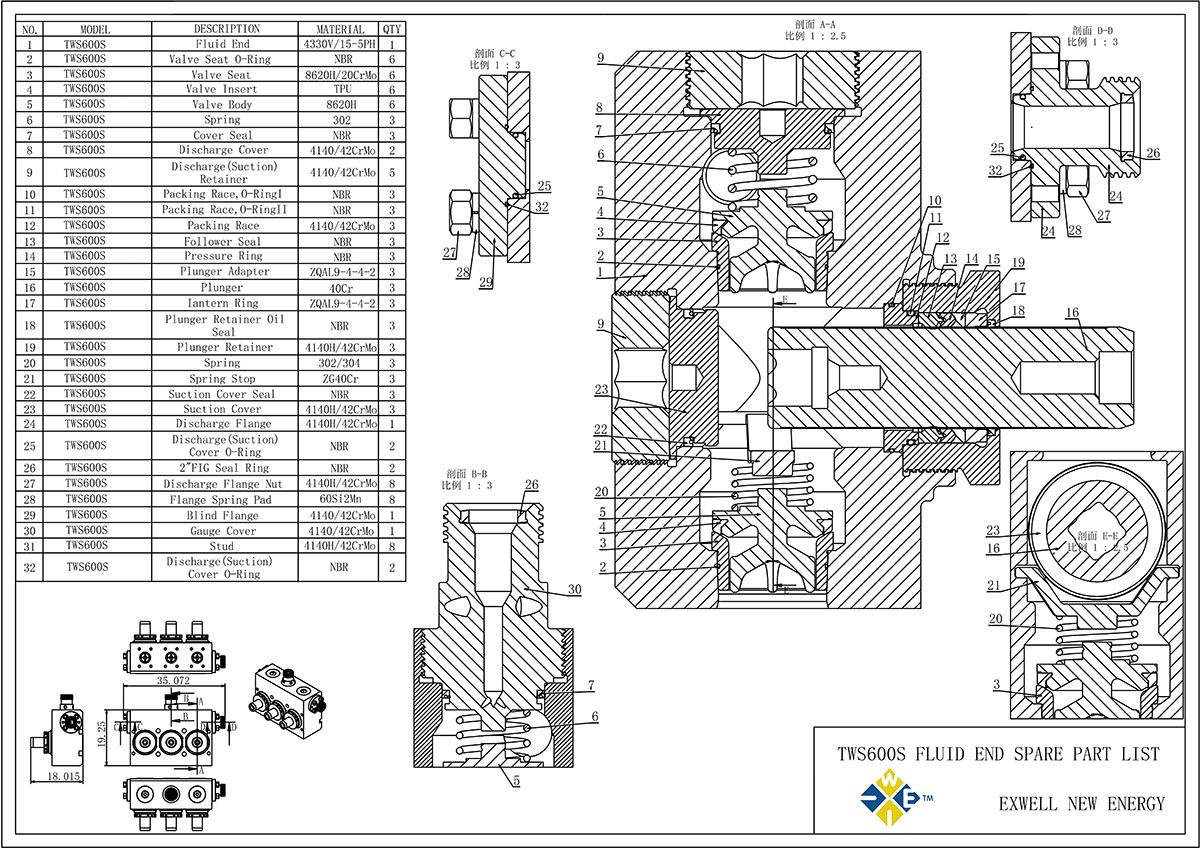

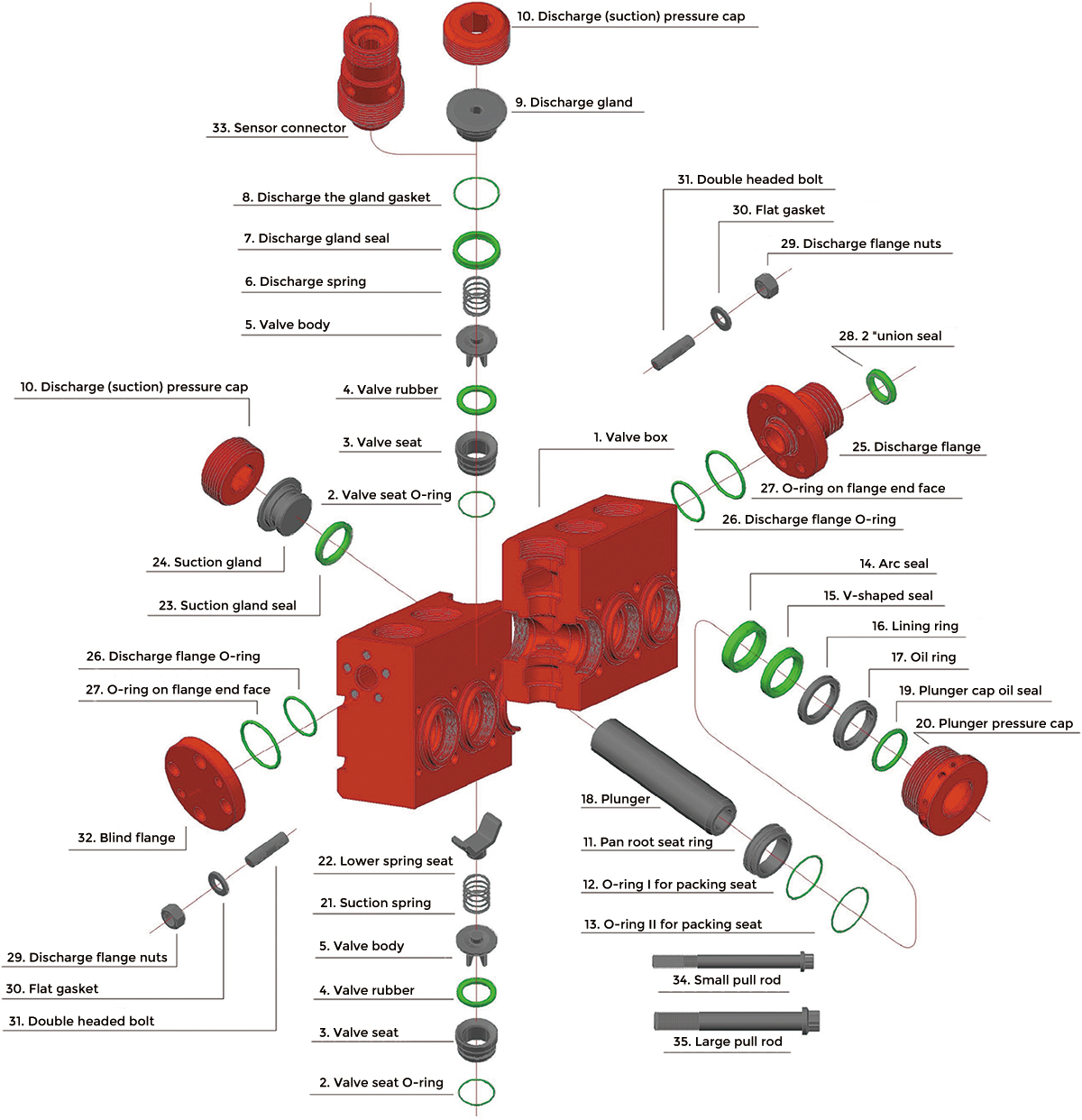

TWS600S FLUID END ASSEMBLY

Part Description

Plunger Size/Part Number

3 In

3-1/2 In

4 In

4-1/2 In

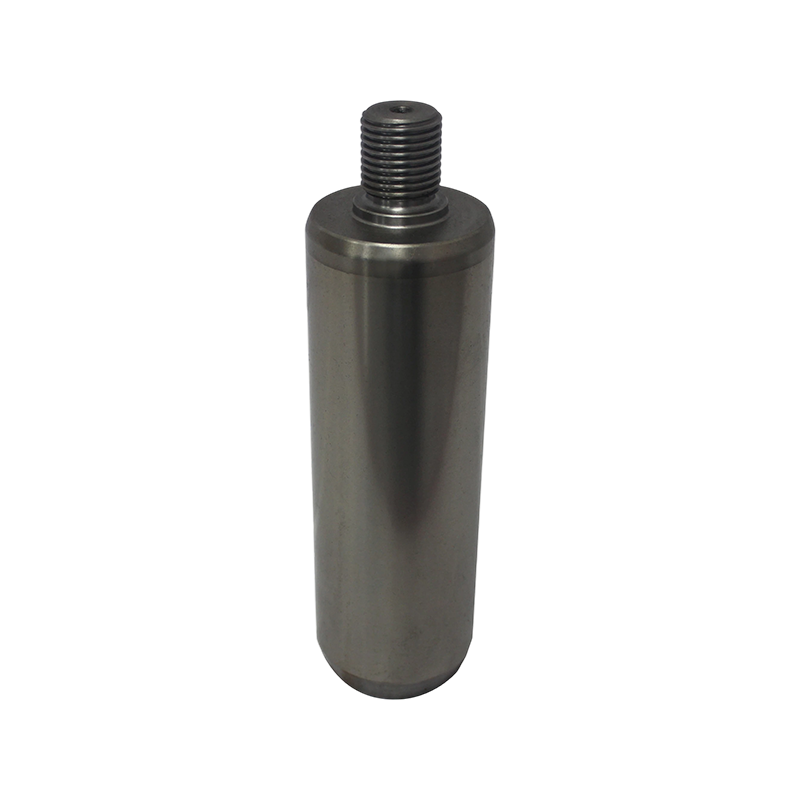

plunger

2P103345

2P103344

2P103312

Lantern ring

3P107527

3P107528

3P107530

3P107531

Header ring

P100332HP

P100298HP

p100342HP

P100195HP

Pressure ring

P100331HP

P100297HP

P100343HP

P100652HP

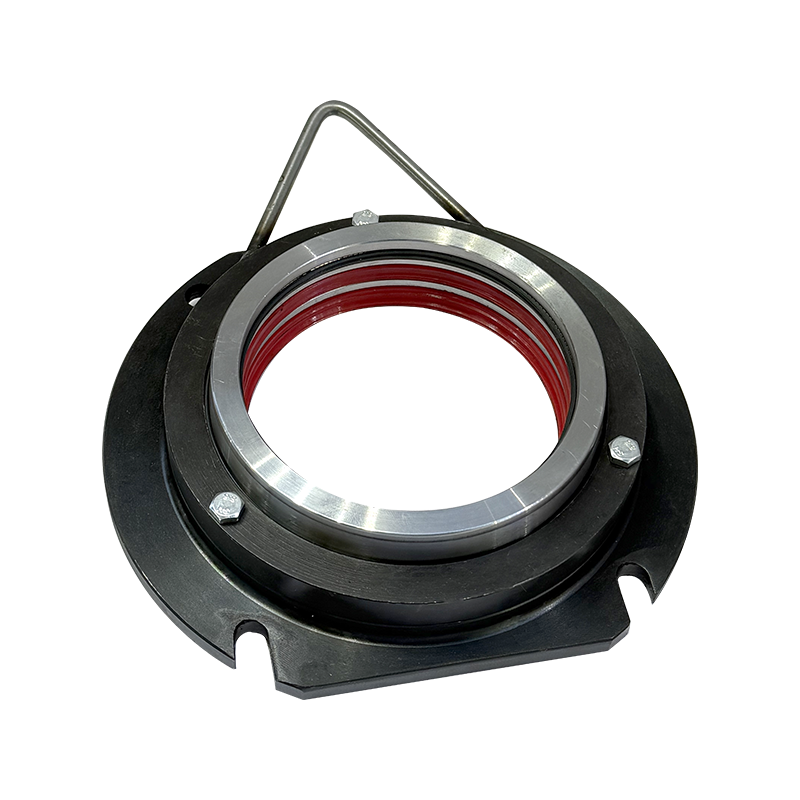

Seal case

3P103524

3P103034

3P103033

3P103022

Packing nut

3P104709

3P103038G

3P103037G

3P103027G

Wiperring

P102093HP

P102208HP

P101883HP

P101252HP

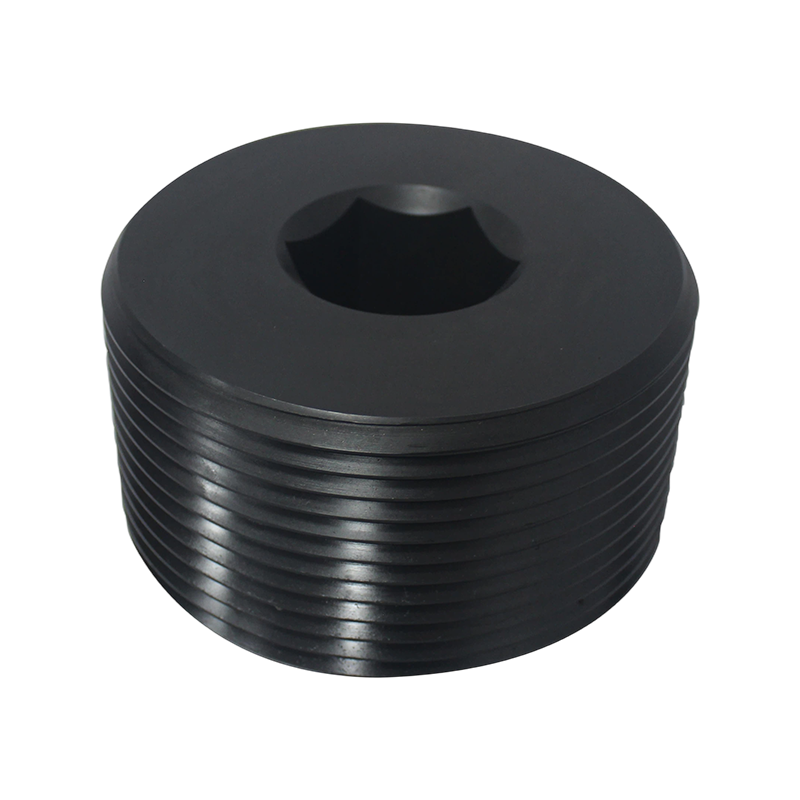

Lower suction cover

3P104710

3P104373

3P104373

3P104373

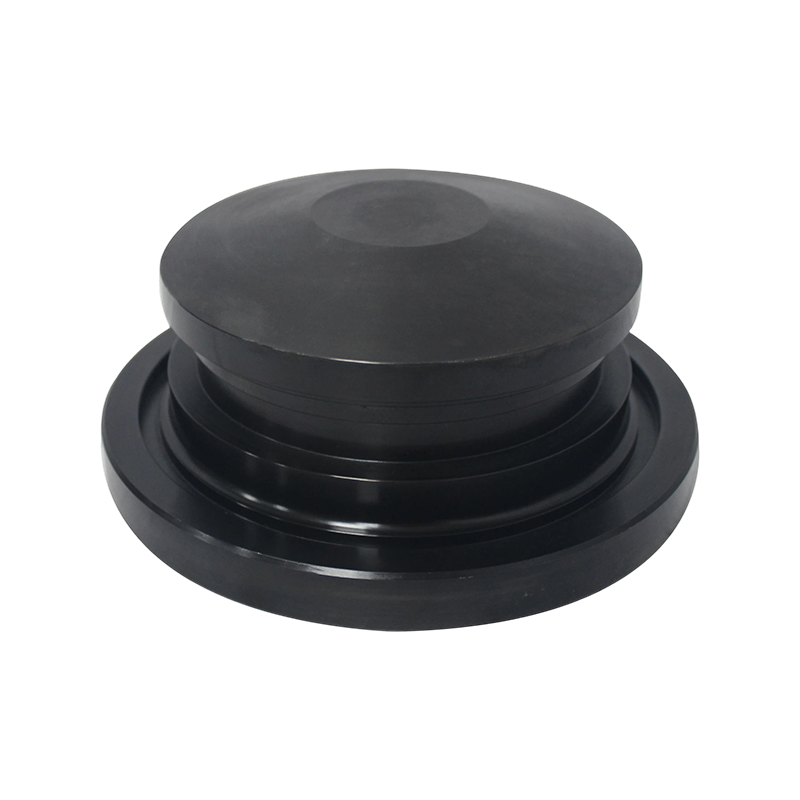

Discharge cover

2P104711

3P105149

3P105149

3P105149

Upper suction cover polyurethane seal

P105095

P103068

P103068

P103068

Upper suction cover D-shape seal

P109313

P109379

P109379

P109379

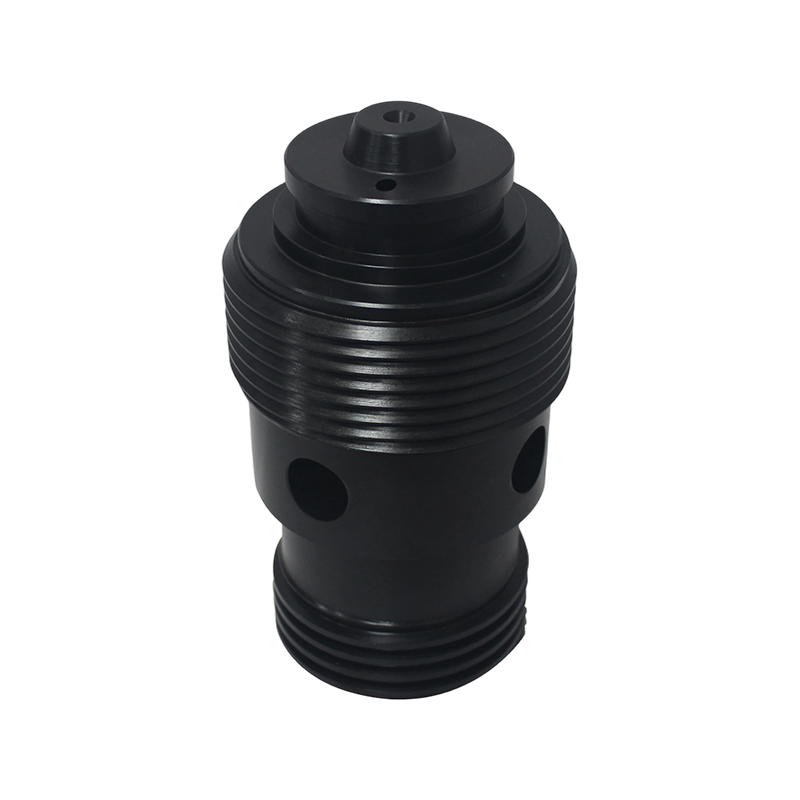

Suction valve stop

3P101634

3P100176

3P100176

3P100176

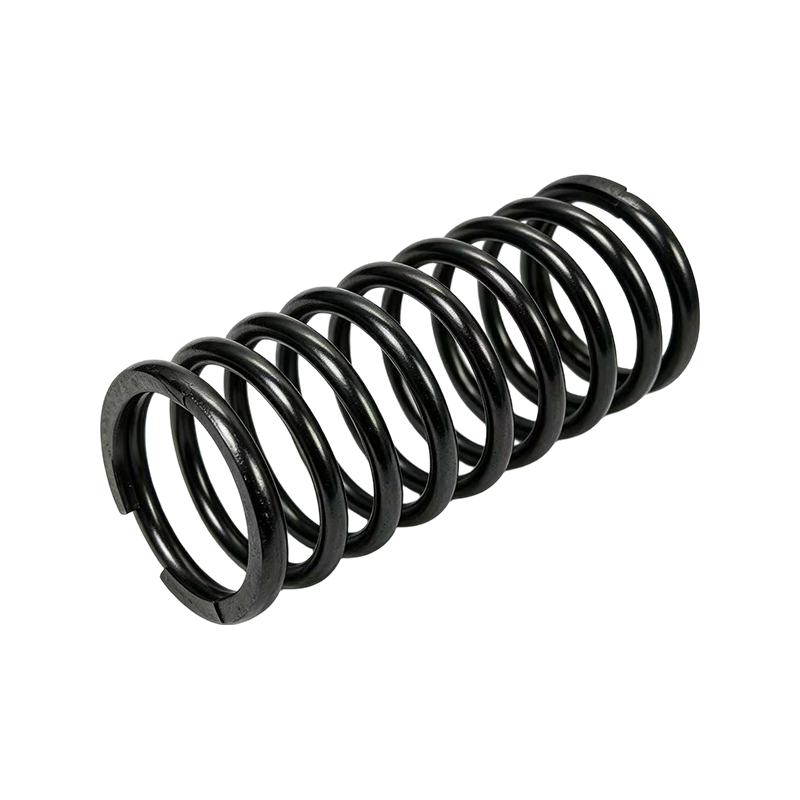

Valve spring

4P104721

4P100198

4P100198

4P100198

Retainer nut

3P104723

3P104372

3P104372

3P104372

Valve with insert

2A109608PP

2A109537PP

2A109537PP

2A109537PP

Seat

2A109605PP

2A109541

2A109537PP

Seat seal

P104289

P103293

P103293

P103293

Plunger seal plastic adapter

P107614

P107532

P107533

P107469

Valve insert

2P110355

2P110356

2P110356

2P110356

Small fluoroplastic sealing ring

P103576

P103064

P103064

P103064

Large fluoroplastic sealing ring

P103370

P103349

P103062

P103371

O-Ring

P103368

P101519

P103061

P103369

Small sealing ring

P18481

P103063

P103063

P103063

Lower suction cover seal

3P100182

P108291

P108291

P108291

Plunger packing seal

3A104769HP

3A105368

3A105297HP

Plunger small packing seal

3A107009HP

3A109554

3A109556

Plunger pin

4P101714

4P101714

4P101714

4P101714

Retainer nut for pressure gage

2P104719

2P103069

2P103069

2P103069

2"end seal for HP mains

4P10229

4P10229

4P10229

4P10229

Lower suction cover polyurethane seal

-

P100197

P100197

P100197

Discharge flange

3P100182

3P100182

3P100182

3P100182

Discharge flange stud 1-8 UNCx31/2

P14896

P14896

P14896

P14896

Nut 1-8 UNC

P14897

P14897

P14897

P14897

End sealing ring discharge flange

P109509

P109509

P109509

P109509

D-shape sealing ring discharge flange

P109509

P109509

P109509

P109509

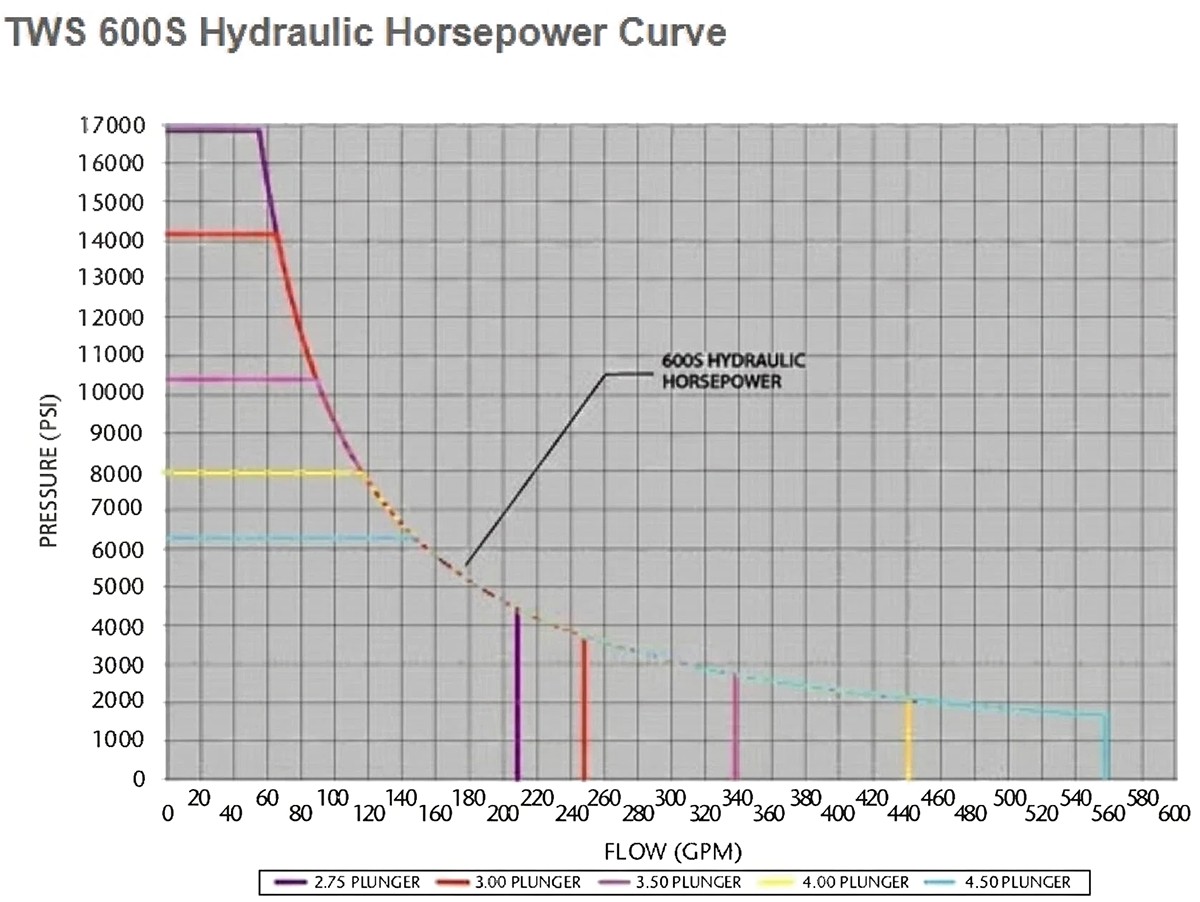

TWS 600S Performance Data

PLUNGER DIAMETER

OUTPUT PER REV

DISPLACEMENT AT PUMP STROKES PER MINUTE / PINION RPM

50/230

120/552

200/920

300/1380

450/2070

mm

(in)

gal/rev(liter/rev)

gpm(lpm)

Kg/cm²(PSI)

gpm(lpm)

Kg/cm²(PSI)

gpm(lpm)

Kg/cm²(PSI)

gpm(lpm)

Kg/cm²(PSI)

gpm(lpm)

Kg/cm²(PSI)

63.5

(2 1/2”)

1.4

(0.38)

72

(19)

1,436

(20,372)

174

(46)

1,421

(20,165)

290

(76)

853

(12,099)

434

(115)

568

(8,066)

651

(172)

379

(5,377)

69.9

(2 3/4”)

1.8

(0.46)

87

(23)

1,186

(16,836)

210

(56)

1,174

(16,665)

350

(93)

705

(9,999)

526

(139)

470

(6,666)

788

(208)

313

(4,444)

76.2

(3”)

2.1

(0.55)

104

(28)

997

(14,147)

250

(66)

987

(14,003)

417

(110)

592

(8,402)

625

(165)

395

(5,601)

938

(248)

263

(3,734)

88.9

(3 1/2”)

2.8

(0.75)

142

(37)

732

(10,394)

341

(90)

725

(10,288)

568

(150)

435

(6,173)

851

(225)

290

(4,115)

1,277

(337)

193

(2,744)

101.6

(4”)

3.7

(0.98)

185

(49)

561

(7,958)

445

(118)

555

(7,877)

741

(196)

333

(4,726)

1,112

(294)

222

(3,151)

1,668

(441)

148

(2,100)

114.3

(4 1/2”)

4.7

(1.24)

235

(62)

443

(6,288)

563

(149)

439

(6,224)

938

(248)

263

(3,734)

1,407

(372)

175

(2,489)

2,111

(558)

117

(1,660)

NPUT POWER: BHP (Kw)

188

(253)

448

(600)

448

(600)

448

(600)

448

(600)

1. Based on 90% ME and 100% VE - Intermittent Service Only.

2. For applications demanding pressures over 15,000 psi, contact SPM Engineering.
