Anhui Exwell New Energy Technology Co., Ltd. supplies custom mud pump housing components for triplex and quintuplex well service pumps used in drilling, cementing, fracturing and well intervention. Our housing range covers standard interchangeable models and drawing-based configurations, manufactured under API Spec 7K with full material traceability and inspection documentation. As a Custom Mud Pump Housing Components supplier, we support direct replacement programs and project-specific housing requirements for oil and gas operators worldwide.
Our 20-acre production base in Wuhu, Anhui operates CNC boring and milling centers, gantry machining centers and coordinate measuring equipment. Each housing follows a controlled process route from incoming material verification through finish machining, NDT and final dimensional acceptance, with all inspection reports shipped together with the cargo.
Mud Pump Housing Range and Model Coverage
We supply mud pump housing models including 10230560-02M, NM3-10.666.01, NM3-10.666.02, NM3-10.667.01 and NM3-10.667.02. Each housing is designed as a direct replacement for the corresponding pump frame, with machined bores, flange faces and sealing surfaces prepared for fluid end installation.
- Standard interchangeable housings — direct replacement for OEM part numbers, no modification required.
- Drawing-based custom housings — produced from customer drawings, samples or worn components.

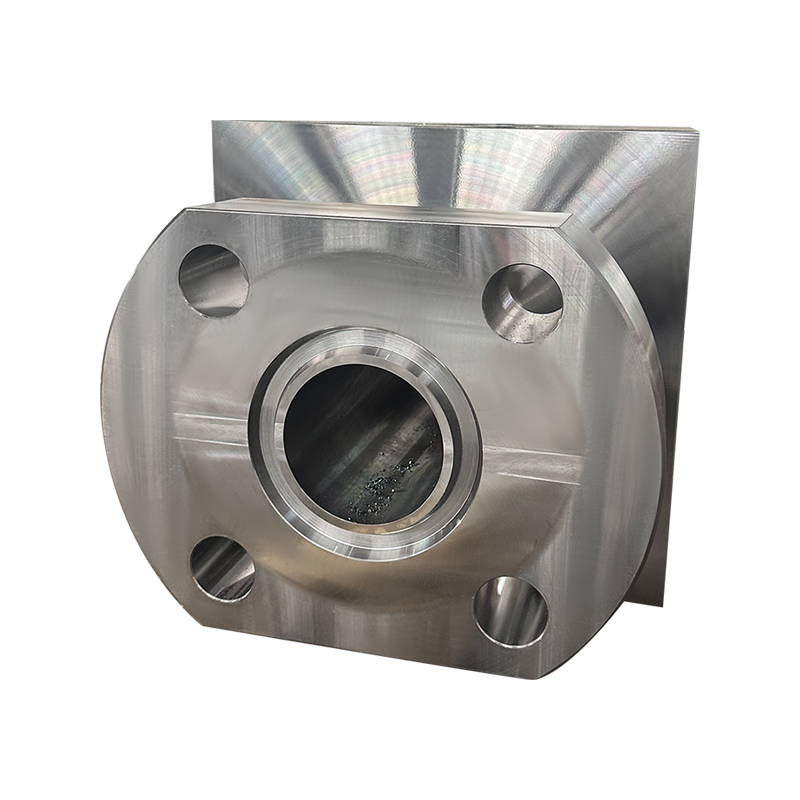

- Flange housing configurations — machined flange faces and port patterns matched to the fluid end module.
- Complete housing assemblies — supplied as part of an integrated Mud Pump Assembly scope when required.
Application Fit and Working Conditions
Mud pump housings form the structural interface between the Power End and the Fluid End. They carry the reciprocating loads from the crosshead and connecting rod assembly while maintaining alignment of the fluid end modules under high-pressure cyclic duty.
Typical applications: drilling mud circulation, well cementing, fracturing and stimulation, well intervention and workover pumping. Housings are configured for triplex well service pumps including the JWS-400 platform, and for SPM, Halliburton, GD and FMC series equipment.
Materials and Critical Specifications
Housing bodies are produced from alloy steel grades selected for the working pressure and fatigue duty of the pump. We control incoming material with chemical composition and mechanical property verification, then machine critical bores, flange faces and sealing surfaces on CNC boring and milling centers.
- Alloy steel housing bodies with verified chemical composition and mechanical properties.
- Machined bores, flange faces and sealing surfaces prepared for fluid end installation.
- Dimensional inspection on coordinate measuring equipment.
- Non-destructive testing applied to high-stress areas before final acceptance.
- Designed and manufactured according to API Spec 7K.
Manufacturing and Quality Control
Our Wuhu production base operates Czech TOS CNC boring and milling machines, Mazak horizontal boring and milling machining centers, Okuma gantry machining centers and quantitative CNC machining centers. Each housing follows a controlled process route: incoming material inspection, rough machining, stress relief where required, finish machining, dimensional verification, NDT, surface treatment and final inspection.
Quality assurance scope: full chain quality inspection from raw material entry through finished product delivery. Products undergo multiple rounds of testing and verification before delivery, with all inspection reports provided together with the cargo.
Customization and Configuration Approach
We accept drawings, samples or worn components as the basis for reverse engineering. The customization workflow covers feasibility analysis, technical assessment, quotation, proofing and mass production. For housings with non-standard flange patterns, port locations or mounting interfaces, we confirm the working point, material grade and dimensional envelope before releasing the production drawing.
- Drawings / samples submission — customer provides drawings, samples or worn parts to clarify customization requirements.
- Technical assessment — professional technical evaluation to confirm feasible solutions and parameter recommendations.
- Quotation — accurate cost calculation and formal quotation issued.
- Proofing — customized sample production and sample testing confirmation.
- Mass production — standardized mass production with quality and quantity guaranteed delivery.
Information We Use to Configure Your Solution
The following project inputs allow us to prepare an accurate configuration and quotation for mud pump housing components.
| Project Input |
What We Confirm |
| Pump model / OEM part number |
Housing interchangeability and dimensional match to the pump frame |
| Working pressure and flow rate |
Material grade selection and fatigue duty assessment |
| Flange pattern and port configuration |
Machining scope and sealing surface preparation |
| Material grade requirement |
Chemical composition and mechanical property verification plan |
| Quantity and delivery target |
Production scheduling and packaging scope |
| Inspection and documentation requirements |
NDT scope, dimensional reports and material certificates |
Frequently Asked Questions
What mud pump housing models do you supply?
We supply models 10230560-02M, NM3-10.666.01, NM3-10.666.02, NM3-10.667.01 and NM3-10.667.02, designed as direct replacements for the corresponding pump frames. Custom configurations are also produced from drawings or samples.
Can you manufacture housings from drawings or samples?
Yes. Customized production is our core business. We can develop and manufacture based on the drawings or samples you provide, including reverse engineering from worn components.
What material grades are available for mud pump housings?
Housing bodies are produced from alloy steel grades selected for the working pressure and fatigue duty of the pump. We verify chemical composition and mechanical properties on incoming material before machining begins.
What inspection reports are provided with the cargo?
All inspection reports are provided together with the cargo, including material certificates, dimensional inspection results and non-destructive testing documentation as applicable to the housing configuration.
Do you supply housings for SPM, Halliburton, GD and FMC pumps?
Yes. We provide original quality alternative solutions for SPM, Halliburton, GD and FMC series spare parts, with housings configured for direct replacement without modification.
What is the typical lead time for custom mud pump housings?
Lead time depends on the housing configuration, material grade and order quantity. After receiving your drawings, samples or worn components, we complete feasibility analysis and provide a formal quotation with a confirmed delivery schedule.
