QWS1000 Fluid End Assembly

Home / Products / Custom Spare Part / QWS1000 Fluid End Assembly

QWS1000 Fluid End Assembly

We supply 3–5 inch replacement parts perfectly matching SPM QWS1000 pumps. All products comply with OEM specifications. And custom development for different operating requirements.

Contact Us
PREV：TWS2250 Fluid End AssemblyNEXT：QWS2500 Fluid End Assembly
  • Product Details
  • Parameter

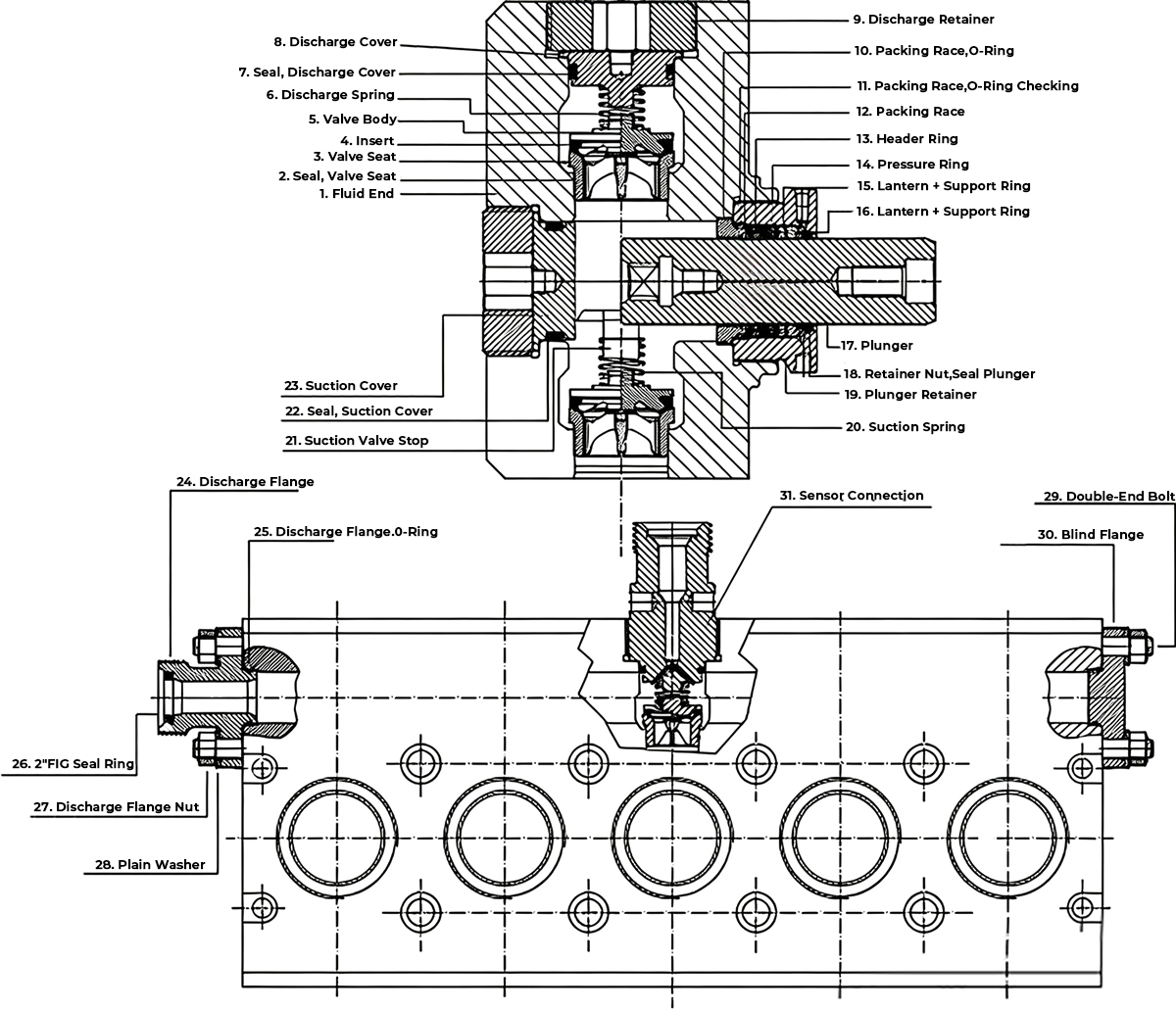

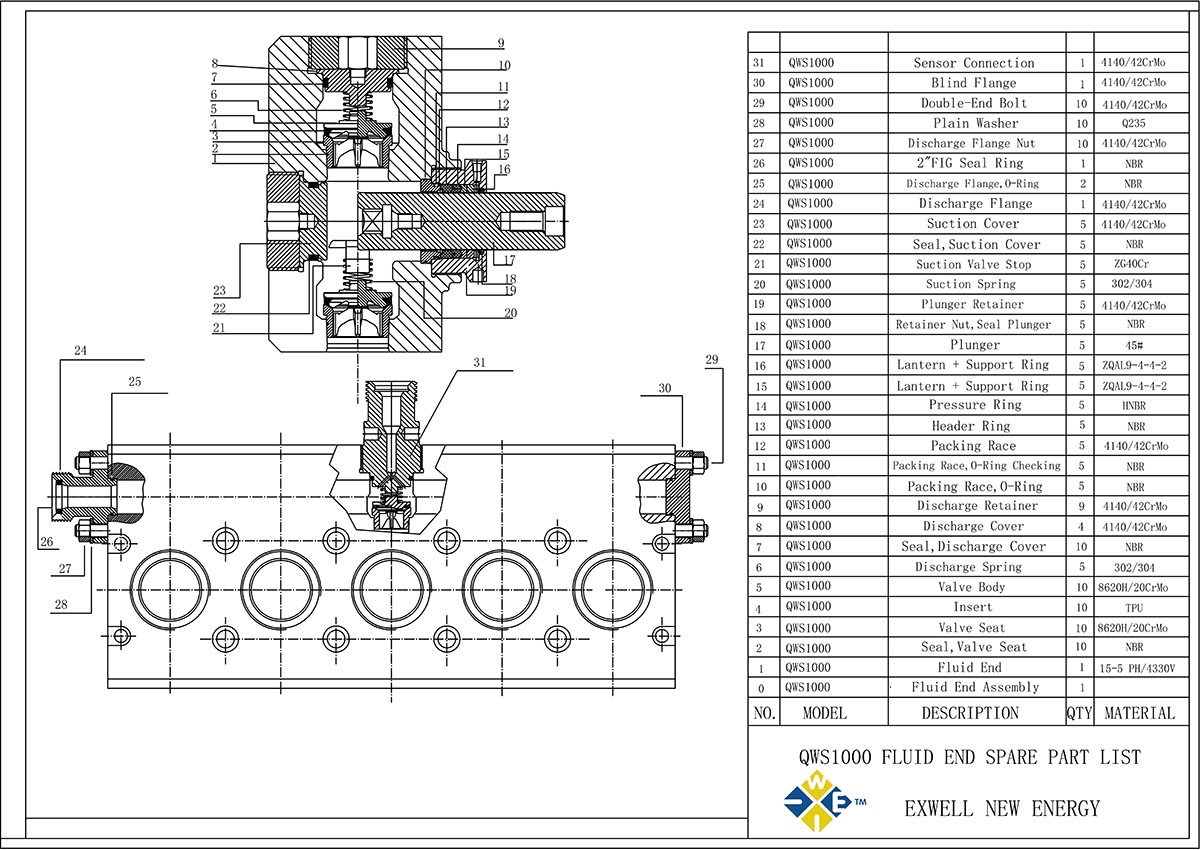

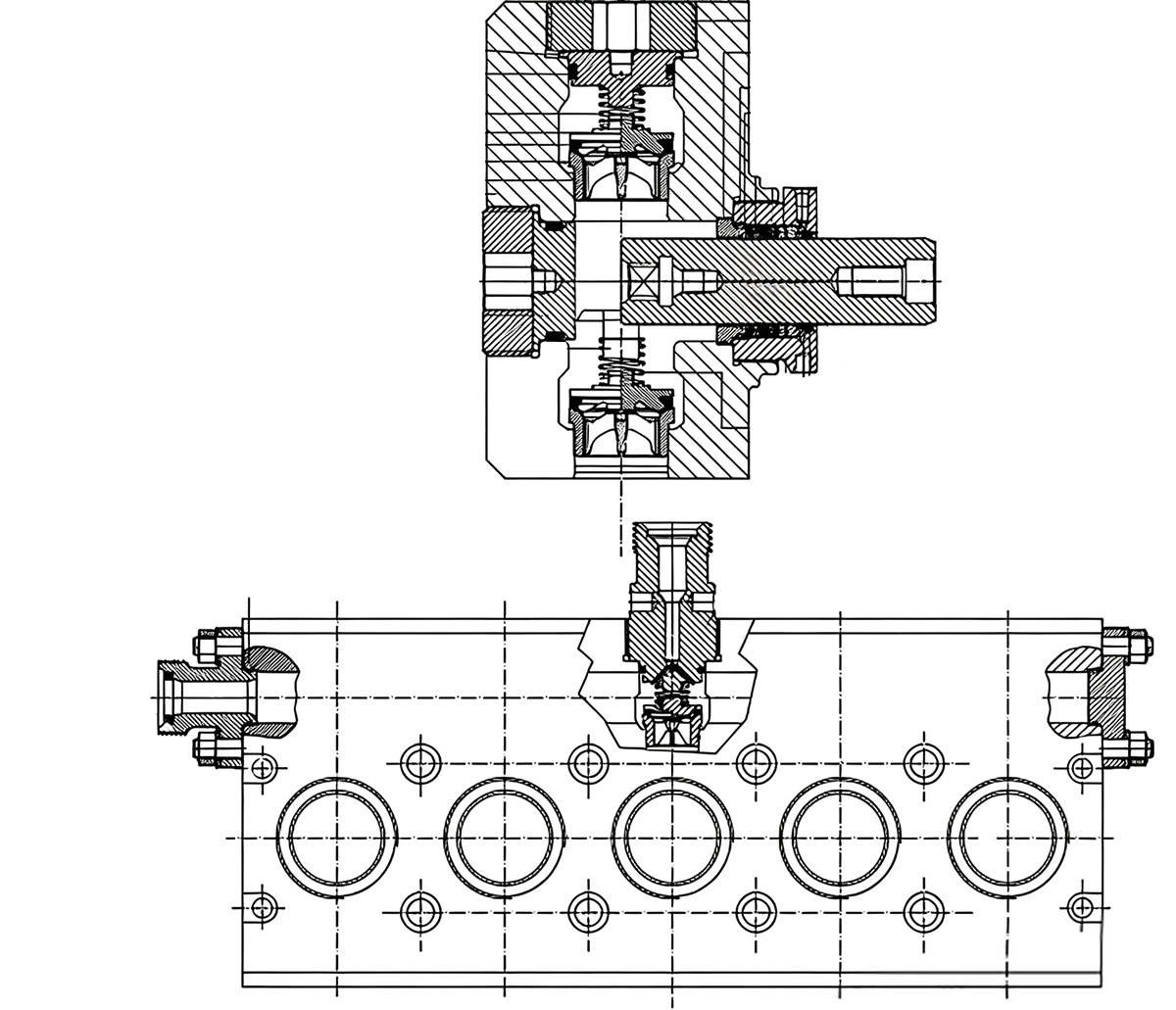

  • Product drawing

QWS1000FLUID END ASSEMBLY

LOC

Part Description

QTY

Material

1

Seal, Valve Seat

10

NBR

2

Valve seat

10

8620H/20CrMo

3

Inserts

10

TPU

4

Valve body

10

8620H/20CrMo

5

Discharge Spring

5

302/204

6

Seal, Discharge Cover

10

NBR

7

Discharge Cover

4

4140/42CrMo

8

Discharge Retainer

9

4140/42CrMo

9

Packing Race, O-Ring

5

NBR

10

Packing Race, O-Ring Checking

5

NBR

11

Packing Race

5

4140/42CrMo

12

Header Ring

5

NBR

13

Pressure Ring

5

HNBR

14

Lattern +Support Ring

5

ZQAL9-4-4-2

15

Lattern +Support Ring

5

ZQAL9-4-4-2

16

Plunger

5

45#

17

Retainer nut, Seal Plunger

5

NBR

18

Plunger Retainer

5

4140/42CrMo

19

Suction Spring

5

302/204

20

Suction Valve Stop

5

ZG40Cr

21

Seal, Suction Cover

5

NBR

22

Suction Cover

5

4140/42CrMo

23

Discharge Flange

1

4140/42CrMo

24

Discharge Flange, O-Ring

2

NBR

25

2''FIG Seal Ring

1

NBR

26

Discharge Flange Nut

10

4140/42CrMo

27

Plain Washer

10

Q235

28

Double-end Bolt

10

4140/42CrMo

29

Blind Flange

1

4140/42CrMo

30

Sensor connection

1

4140/42CrMo

1. High-strength

2. API Standard

3. Excellent Cost Performance

Performance Data

Plunger Diameter

Output Per Rev

DISPLACEMENT AT PUMP STROKES PER MINUTE/PINION RPM

50/231

100/461

119/548

200/922

300/1383

450/2075

In(mm)

Gal/Rev(Liter/Rev)

GPM(LPM)

PSI(Mpa)

GPM(LPM)

PSI(Mpa)

GPM(LPM)

PSI(Mpa)

GPM(LPM)

PSI(Mpa)

GPM(LPM)

PSI(Mpa)

GPM(LPM)

PSI(Mpa)

2 1/2”

(63.5)

0.64

(2.4)

32

(121)

20372

(140.4)

64

(241)

20372

(140.4)

76

(287)

20368

(14.4)

127

(483)

12009

(828)

191

(724)

8066

(55.6)

287

(1086)

5377

(37)

2 3/4”

(69.9)

0.77

(2.9)

39

(146)

16836

(116.1)

77

(292)

16836

(116.1)

92

(347)

16836

(116.1)

154

(584)

9999

(68.9)

231

(876)

6666

(45.9)

347

(1314)

4444

(30.6)

3”

(76.2)

0.92

(3.5)

46

(174)

14147

(97.5)

92

(347)

14147

(97.5)

109

(413)

14147

(97.5)

184

(695)

8402

(57.9)

275

(1042)

5601

(38.6)

413

(1564)

3734

(25.7)

3 1/2”

(88 .9)

1.25

(4.7)

62

(236)

10394

(71.6)

125

(473)

10394

(71.6)

148

(562)

10394

(71.6)

250

(946)

6173

(42.5)

375

(1419)

4115

(28.3)

562

(2128)

2744

(18.9)

4”

(101.6)

1.63

(6.2)

82

(309)

7958

(54.8)

163

(618)

7958

(54.8)

194

(734)

7958

(54.8)

326

(1235)

4726

(32.5)

490

(1853)

3151

(21.7)

734

(2780)

2100

(14.4)

4 1/2”

(114.3)

2.07

(7.8)

103

(391)

6288

(43.3)

207

(782)

6288

(43.3)

245

(929)

6288

(43.3)

413

(1564)

3734

(25.7)

620

(2345)

2489

(17.1)

929

(3518)

1660

(11.4)

INPUTPOWER: BHP(KW)

421

(314)

842

(628)

1000

(746)

1000

(746)

1000

(746)

1000

(746)

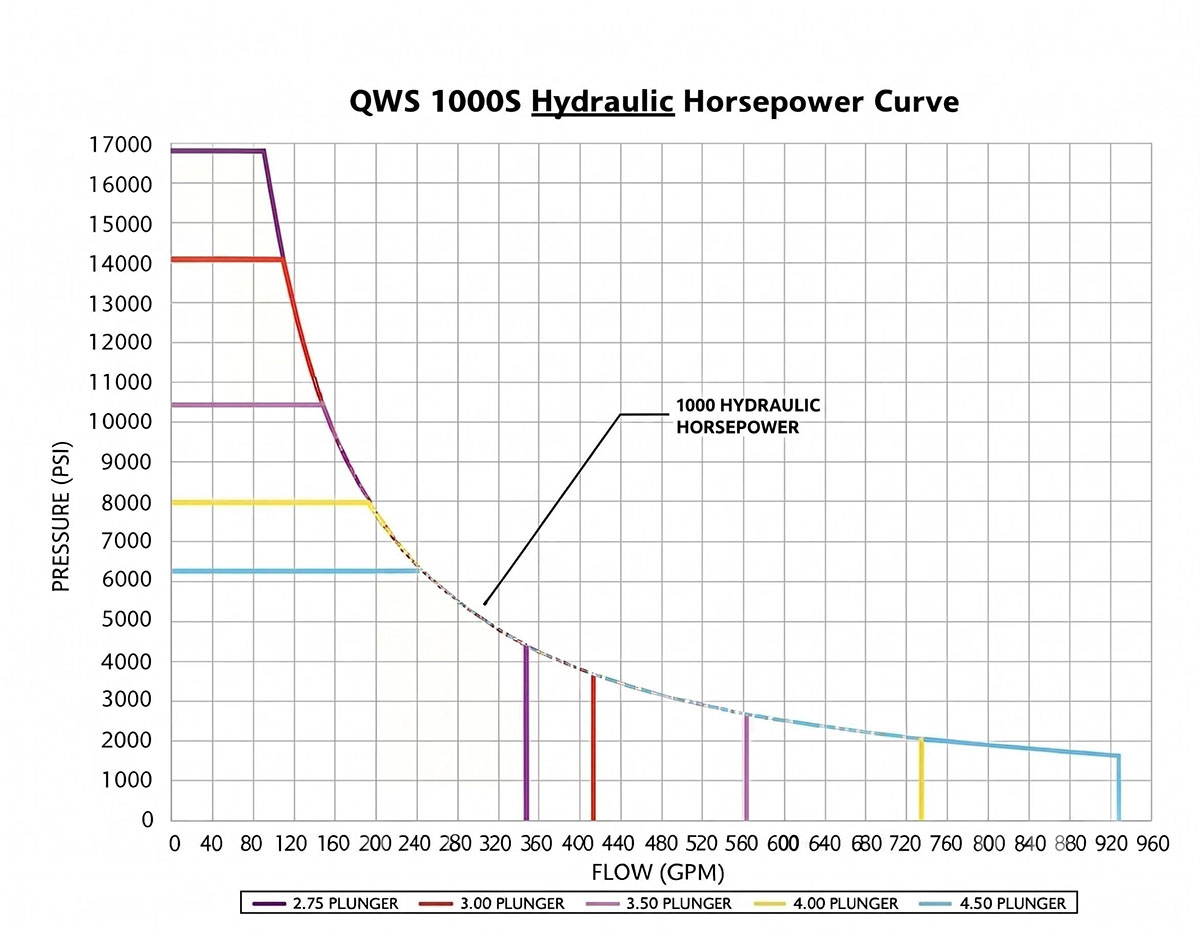

Note: This chart shows this pump's performance at max hydraulic horsepower. Notice as the plunger size for the pump increases, a greater max flow rate is achieved while the max pressure decreases.


Recommended Products

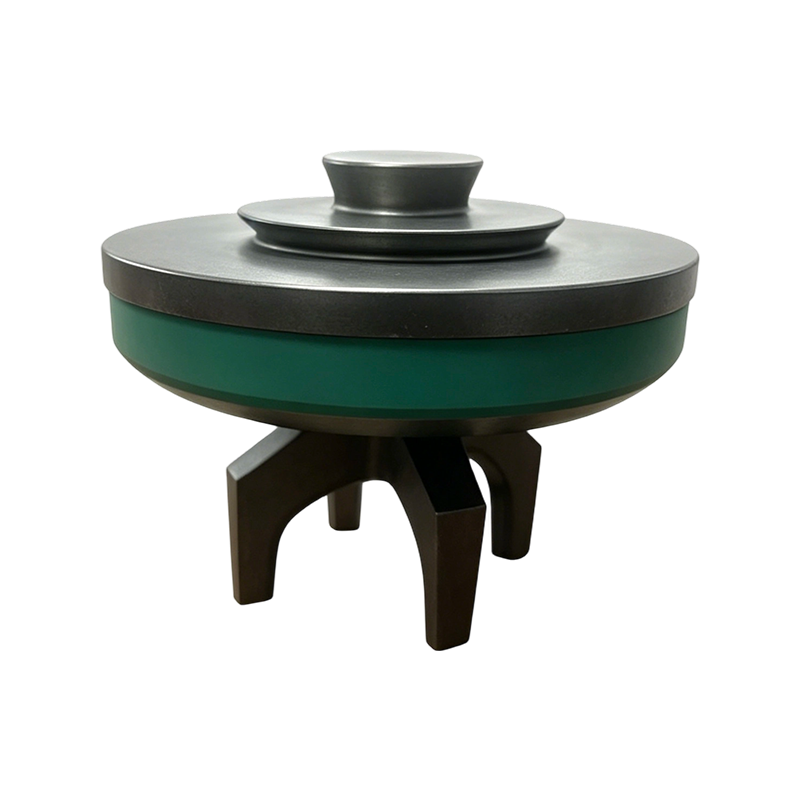

  • Valve Body

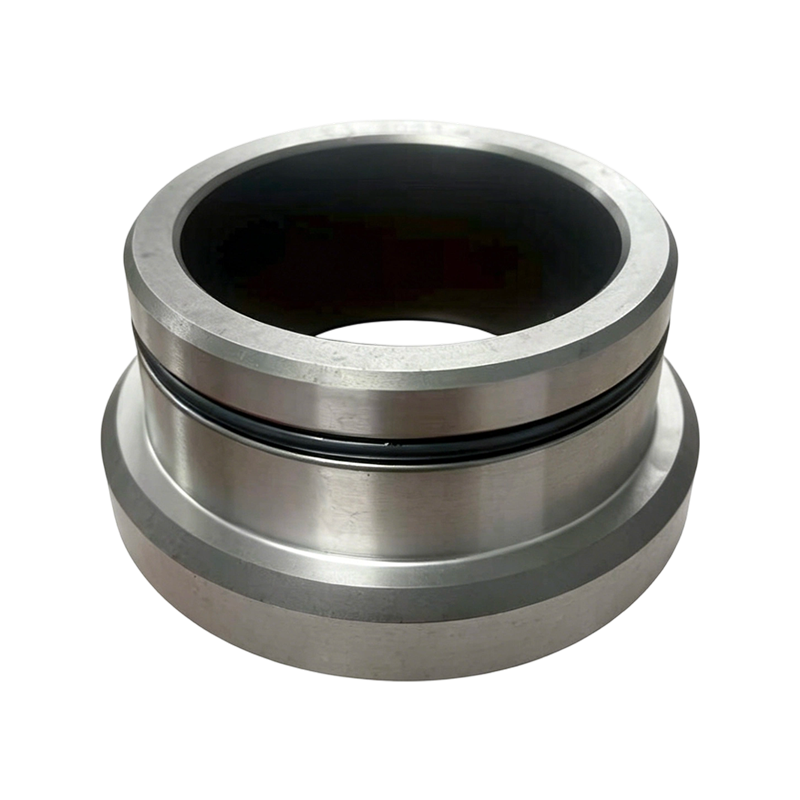

  • Valve Seat

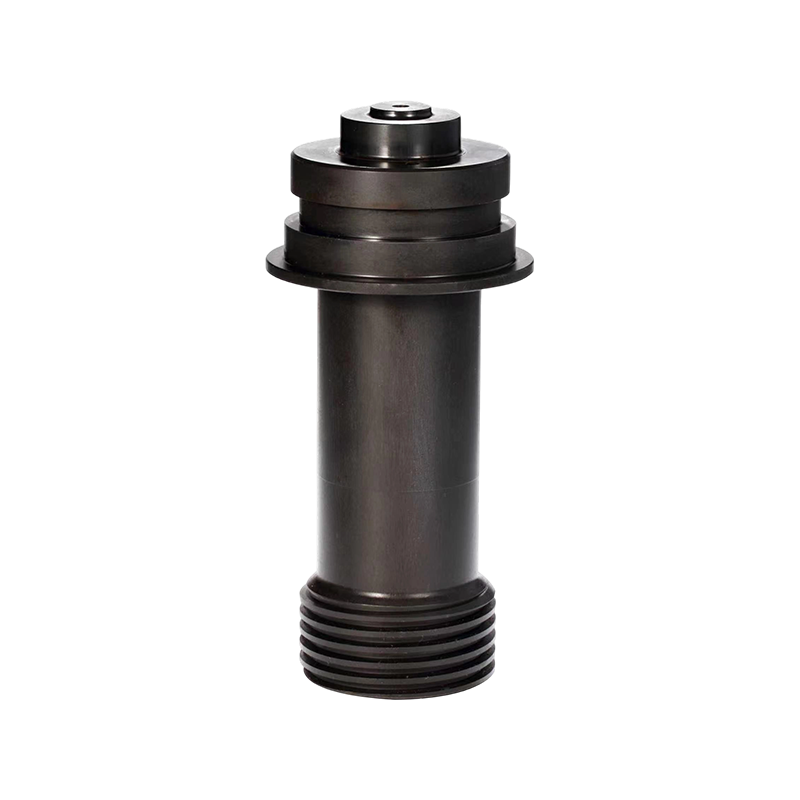

  • Sensor Connector

  • Seal

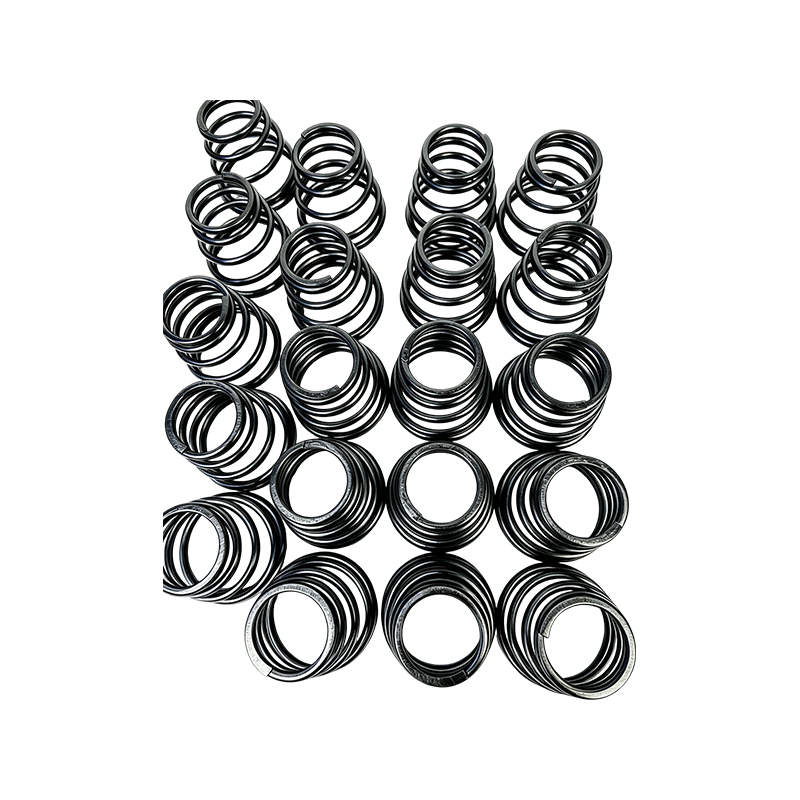

  • Spring
