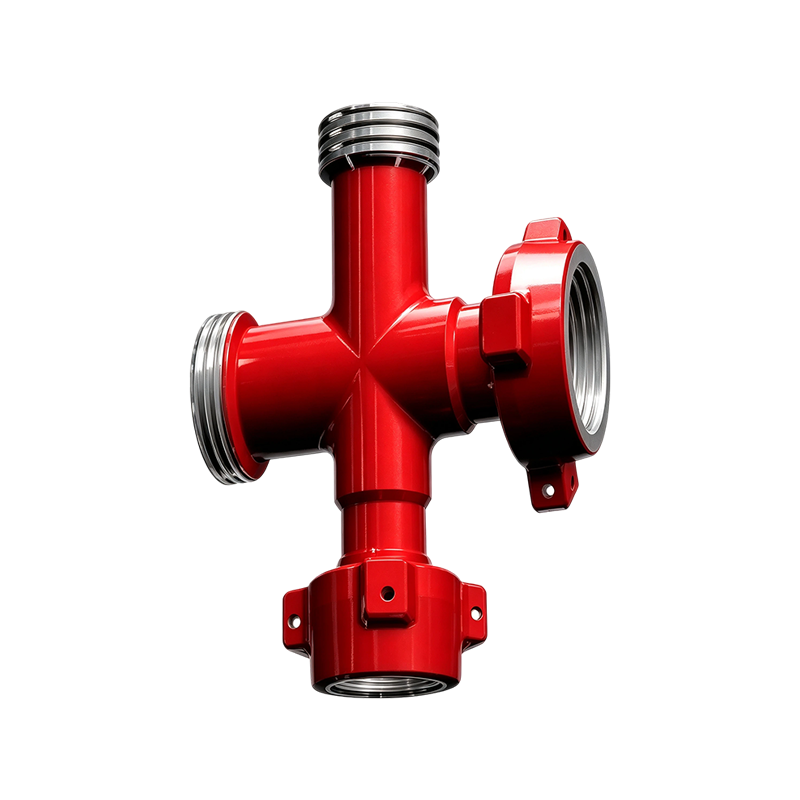

Multi-Port Integral Cross Joint for Heavy Duty Pipeline Flow Splitter

Size: 2"、3"

Working pressure: 42MPa-105MPa(6000psi–15000psi)

Material: Alloy steel、Stainless steel

Contact Us
PREV：FIG 602/1002/1502 Series 45° Lateral Manifold Joint FittingNEXT：High-pressure Throttle Valve
  • Product Details
  • Parameter

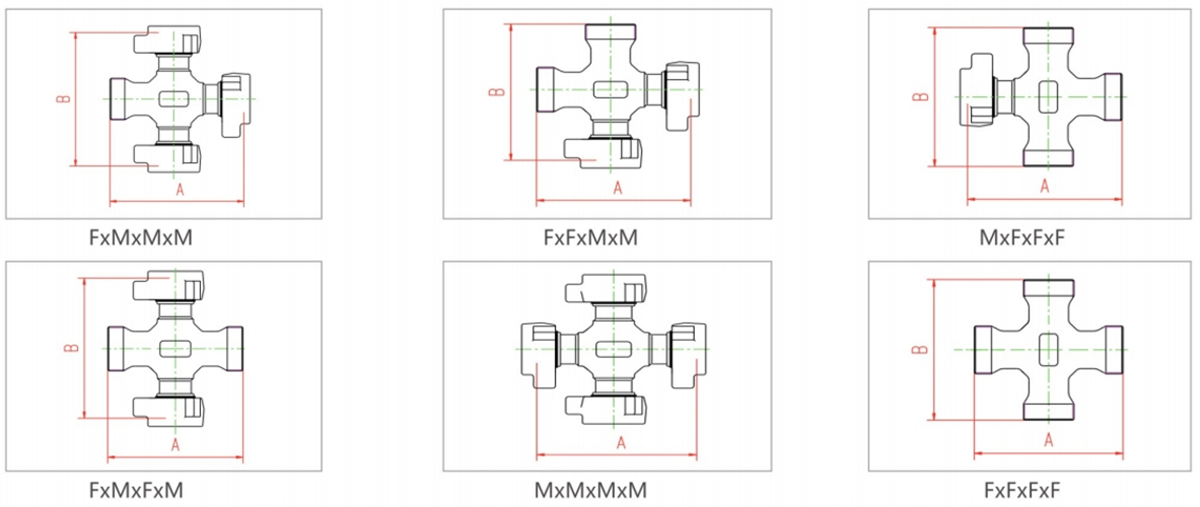

  • Product drawing

Technical Specifications
Dimensional Range: Available in 2-inch and 3-inch bore configurations.
Pressure Capabilities: Designed to handle severe working pressures, with options ranging from 42MPa to 105MPa.
Industrial Standard Compatibility: Fully compliant with the requirements of FIG 602, FIG 1002, and FIG 1502 series.
End-Connection Flexibility: Features a wide variety of mixed connection types—including M×F×F×F, F×F×M×M, and M×M×M×M configurations—to ensure seamless integration into existing pipeline architectures.


Performance Advantages
Enhanced Flow Management: The four-way configuration serves as an ideal central hub for splitting or merging high-pressure lines, significantly simplifying manifold layouts.
Superior Structural Reliability: The integral design minimizes potential leakage points, ensuring long-term sealing performance even under the heavy-duty cycling of oilfield operations.
Field Deployment Efficiency: With a broad selection of connection patterns available, this cross fitting reduces the need for additional adapters, streamlining assembly and maintenance procedures during critical field tasks.
Resilience: Built with materials designed for extreme endurance, providing consistent performance in environments where pressure integrity is paramount.

Specification：2"

Specification：3"

Specification：2"

Specification：3"

Specification：2"

Specification：3"

Pressure:42MPa

Pressure:42MPa

Pressure:70MPa

Pressure:70MPa

Pressure:105MPa

Pressure:105MPa

FIG602(F×M×M×M)

FIG602(F×F×M×M)

FIG602(M×F×F×F)

FIG602(F×M×F×M)

FIG602(M×M×M×M)

FIG602(F×F×F×F)

FIG602(F×M×M×M)

FIG602(F×F×M×M)

FIG602(M×F×F×F)

FIG602(F×M×F×M)

FIG1002(F×M×M×M)

FIG1002(F×F×M×M)

FIG1002(M×F×F×F)

FIG1002(F×M×F×M)

FIG1002(M×M×M×M)

FIG1002(F×M×M×M)

FIG1002(F×F×M×M)

FIG1002(M×F×F×F)

FIG1002(F×M×F×M)

FIG1502(F×M×M×M)

FIG1502(F×F×M×M)

FIG1502(M×F×F×F)

FIG1502(F×M×F×M)

FIG1502(F×F×F×F)

FIG1502(F×M×M×M)

FIG1502(F×F×M×M)

FIG1502(M×F×F×F)

FIG1502(F×M×F×M)

Product
Name		 Specification Working
Pressure		 Dimensions
(mm)		 Type of Connection Weight
(k g)
A B
Crosses Joint 2" 42MPa 308  308  FIG602(F×M×M×M) 32.7
308  308  FIG602(FxFxM×M) 30.4
308  308  FIG602(M×FxF×F) 28.1
308  308  FIG602(F×M×FxM) 30.4
308  308  FIG602(M×M×M×M) 35
308  308  FIG602(F×FxFxF) 26.3
3" 428  428  FIG602(F×M×M×M) 87.1
428  428  FIG602(FxFxM×M) 81.6
428  428  FIG602(M×FxF×F) 76.2
428  428  FIG602(FxM×FxM) 81.6
2" 70MPa 308  308  FIG1002(F×M×M×M) 36.3
308  308  FIG1002(F×FxM×M) 33.1
308  308  FIG1002(M×FxF×F) 30
308  308  FIG1002(F×M×F×M) 33.1
308  308  FIG1002(M×M×M×M) 39.5
3" 428  428  FIG1002(F×M×M×M) 89.4
428  428  FIG1002(FxFxM×M) 83
428  428  FIG1002(M×FxF×F) 80.7
428  428  FIG1002(FxM×FxM) 83
2" 105MPa 308  308  FIG1502(F×M×M×M) 36.3
308  308  FIG1502(FxFxM×M) 33.1
308  308  FIG1502(M×FxF×F) 30
308  308  FIG1502(FxM×FxM) 33.1
308  308  FIG1502(FxFxF×F) 26.8
3" 428  428  FIG1502(F×M×M×M) 89.4
428  428  FIG1502(FxFxM×M) 83
428  428  FIG1502(M×F×F×F) 80.7
428  428  FIG1502(F×M×F×M) 83
