Wholesale High-Pressure Integral T-Joint for Oilfield Pipelines Factory

Home / Products / Spare Part / High-Pressure Integral T-Joint for Oilfield Pipelines

  • High-Pressure Integral T-Joint for Oilfield Pipelines
  • High-Pressure Integral T-Joint for Oilfield Pipelines

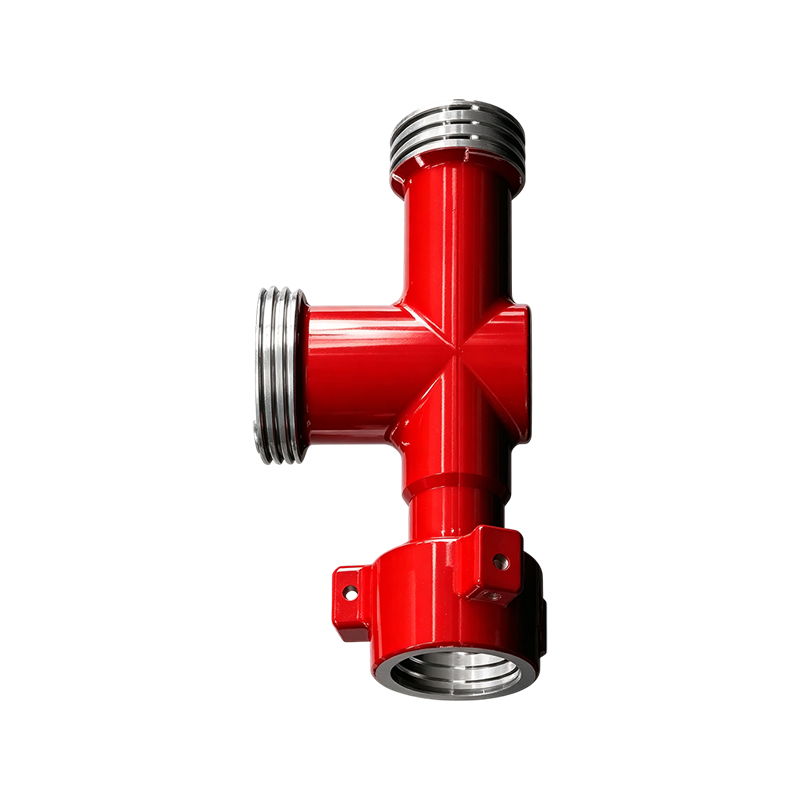

High-Pressure Integral T-Joint for Oilfield Pipelines

Sizes: 2"、3"

Working pressure: 42MPa-105MPa(6000psi–15000psi)

Material: Alloy steel、Stainless steel

Contact Us
PREV：Swivel Joint Repair Kit for 2" to 4" High-Pressure ElbowsNEXT：High-Pressure Integral L-Type 90° Elbow Joint
  • Product Details
  • Parameter

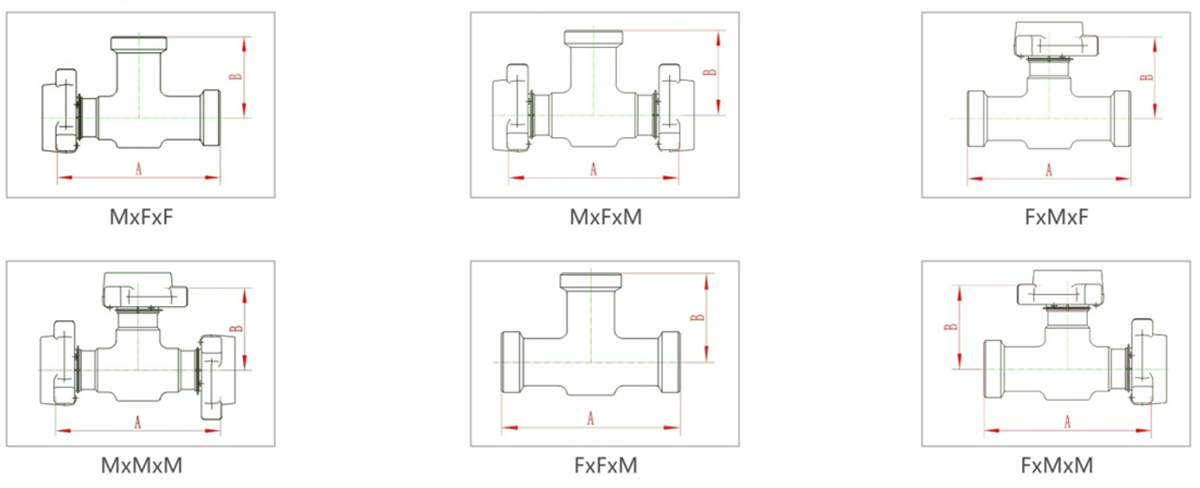

  • Product drawing

Key Performance Features
Durable Integral Design: Constructed as an integral unit, these joints ensure high stability and structural integrity for high-pressure fluid transfer.
Versatile Operational Utility: Specifically designed to effectively manage fluid diversion and parallel flow requirements within complex pipeline arrays.
Environmental Resilience: Offered in various models to maintain performance standards under challenging conditions, such as low temperatures and environments with sulfur-containing gases.
Rigorous Pressure Handling: Built for endurance, these T-joints withstand significant working pressures up to 105MPa (15000psi).
Customizable Configurations: Beyond standard offerings, these joints can be tailored to meet specific user needs, including unique dimensions and specialized industrial applications.


Typical Applications
High-Pressure Oilfield Pipelines: Functions as an indispensable connector for maintaining pipeline fluid management.
Fluid Diversion Systems: Used extensively for splitting or merging flow streams in heavy-duty oilfield infrastructure.
Specialized Gas and Fluid Service: Highly effective in hazardous or extreme temperature environments where standardized joints may fail.

Specification：2"

Specification：3"

Specification：2"

Specification：3"

Specification：2"

Specification：3"

Pressure:42MPa

Pressure:42MPa

Pressure:70MPa

Pressure:70MPa

Pressure:105MPa

Pressure:105MPa

FIG602(M×F×F) FIG602(M×F×M) FIG602(F×M×F) FIG602(F×F×F) FIG602(M×M×M) FIG602(F×M×M)

FIG602(M×F×F) FIG602(M×F×M) FIG602(F×M×F) FIG602(F×F×F) FIG602(M×M×M) FIG602(F×M×M)

FIG1002(M×F×F) FIG1002(M×F×M) FIG1002(F×M×F) FIG1002(F×F×F) FIG1002(M×M×M)

FIG1002(F×M×M) FIG1002(M×F×F) FIG1002(M×F×M) FIG1002(F×M×F) FIG1002(F×F×F)

FIG1502(M×F×F) FIG1502(M×F×M) FIG1502(F×M×F) FIG1502(F×F×F) FIG1502(M×M×M)

FIG1502(F×M×M) FIG1502(M×F×F) FIG1502(M×F×M) FIG1502(F×M×F) FIG1502(F×F×F)

Product
Name		 Specification Working
Pressure		 Dimensions
(mm)		 Type of Connection Weight
(kg)
A B
T-Joint 2" 42MPa 308  154  FIG602(M×F×F) 14.2
308  154  FIG602(M×FxM) 16.3
308  154  FIG602(F×M×F) 14.2
308  154  FIG602(FxF×F) 12
308  154  FIG602(M×M×M) 18.6
308  154  FIG602(F×M×M) 16.3
3" 428  214  FIG602(M×F×F) 56.2
428  214  FIG602(M×F×M) 61.7
428  214  FIG602(FxM×F) 56.2
428  214  FIG602(FxF×F) 50.8
428  214  FIG602(M×M×M) 67.1
428  214  FIG602(F×M×M) 61.7
2" 70MPa 308  154  FIG1002(M×F×F) 17
308  154  FIG1002(M×F×M) 20.9
308  154  FIG1002(F×M×F) 17
308  154  FIG1002(F×F×F) 13.2
308  154  FIG1002(M×M×M) 24.7
3" 428  214  FIG1002(F×M×M) 64.4
428  214  FIG1002(M×FxF) 58
428  214  FIG1002(M×F×M) 64.4
428  214  FIG1002(F×M×F) 58
428  214  FIG1002(FxF×F) 51.7
2" 105MPa 308  154  FIG1502(M×FxF) 17
308  154  FIG1502(M×F×M) 20.9
308  154  FIG1502(F×M×F) 17
308  154  FIG1502(FxF×F) 13.2
308  154  FIG1502(M×M×M) 24.7
3" 428  214  FIG1502(FxM×M) 64.4
428  214  FIG1502(M×F×F) 58
428  214  FIG1502(M×F×M) 64.4
428  214  FIG1502(FxM×F) 58
428  214  FIG1502(FxF×F) 51.7
