Wholesale High-Pressure Integral L-Type 90° Elbow Joint Factory

Home / Products / Spare Part / High-Pressure Integral L-Type 90° Elbow Joint

  • High-Pressure Integral L-Type 90° Elbow Joint
  • High-Pressure Integral L-Type 90° Elbow Joint

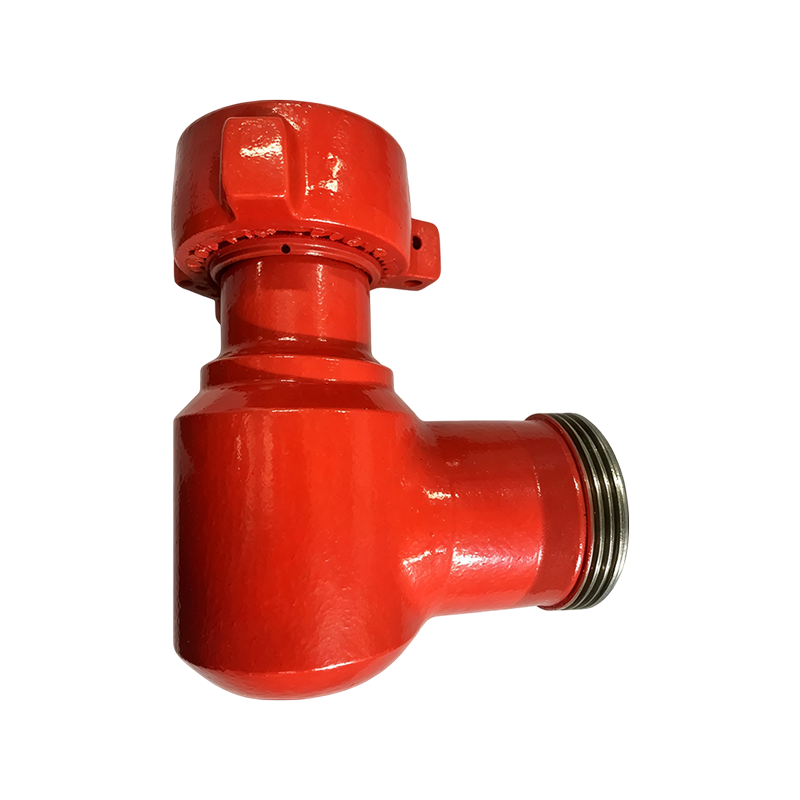

High-Pressure Integral L-Type 90° Elbow Joint

Size:  2"、3"

Working pressure: 42MPa-105MPa(6000psi–15000psi)

Material: Alloy steel、Stainless steel

Contact Us
PREV：High-Pressure Integral T-Joint for Oilfield PipelinesNEXT：2" to 3" High-Pressure Integral Long Radius 90° Elbow Joint
  • Product Details
  • Parameter

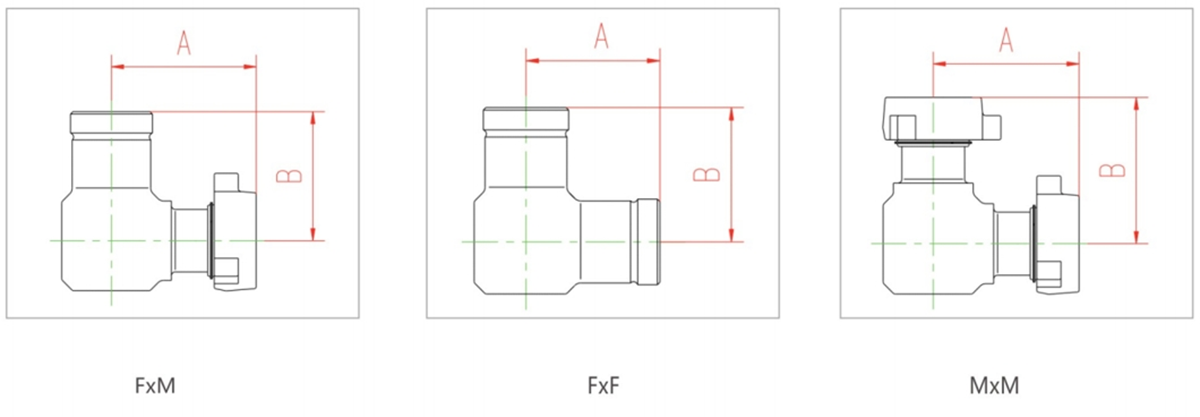

  • Product drawing

Key Performance Features
Engineered Stability: Built as a singular integral piece to ensure superior structural integrity and connection stability under extreme high-pressure flow conditions.
Versatile Environmental Compatibility: Available in specialized models to support operations in normal temperature, low-temperature, and sulfur-containing gas environments.
Efficient Flow Management: Precisely shaped for 90° directional flow, facilitating optimized fluid diversion and parallel flow operations within complex manifold systems.
Proven Durability: Manufactured to provide consistent quality and reliability, reducing the risk of failure during high-pressure well-servicing or pipeline maintenance.
Customization Options: Can be tailored to meet unique customer specifications, accommodating special purposes or non-standard dimensions beyond the standard catalog offerings.


Typical Applications
Oilfield Pipeline Manifolds: Serves as an essential link for routing high-pressure lines within rig-site manifolds.
Fluid Diversion and Switching: Utilized in systems where fluid flow must be redirected or split to different equipment units.
Extreme Condition Piping: Ideal for use in hazardous or harsh environments, including sites with high concentrations of sulfur-containing gases or extreme temperature fluctuations.

Specification：2"

Specification：3"

Specification：2"

Specification：3"

Specification：2"

Specification：3"

Pressure:42MPa

Pressure:42MPa

Pressure:70MPa

Pressure:70MPa

Pressure:105MPa

Pressure:105MPa

FIG602(F×M)

FIG602(F×F)

FIG602(M×M)

FIG602(F×M)

FIG602(F×F)

FIG602(M×M)

FIG1002(F×M)

FIG1002(F×F)

FIG1002(M×M)

FIG1002(F×M)

FIG1002(F×F)

FIG1002(M×M)

FIG1502(F×M)

FIG1502(F×F)

FIG1502(M×M)

FIG1502(F×M)

FIG1502(F×F)

FIG1502(M×M)

Product
Name		 Specification Working
Pressure		 Dimensions
(mm)		 Type of Connection Weight
(k g)
A B
L-90°EIbow 2" 42MPa 154  154  FIG602(F×M) 12.4
154  154  FIG602(F×F) 8.2
154  154  FIG602(M×M) 16.3
3" 214  214  FIG602(F×M) 45.6
214  214  FIG602(F×F) 38.1
214  214  FIG602(M×M) 52.2
2" 70MPa 154  154  FIG1002(FxM) 14.7
154  154  FIG1002(F×F) 10.9
154  154  FIG1002(M×M) 18.5
3” 214  214  FIG1002(F×M) 46.3
214  214  FIG1002(F×F) 39.5
214  214  FIG1002(M×M) 54.9
2" 105MPa 154  154  FIG1502(F×M) 14.7
154  154  FIG1502(F×F) 10.9
154  154  FIG1502(M×M) 18.5
3" 214  214  FIG1502(F×M) 46.3
214  214  FIG1502(F×F) 39.5
214  214  FIG1502(M×M) 54.9
