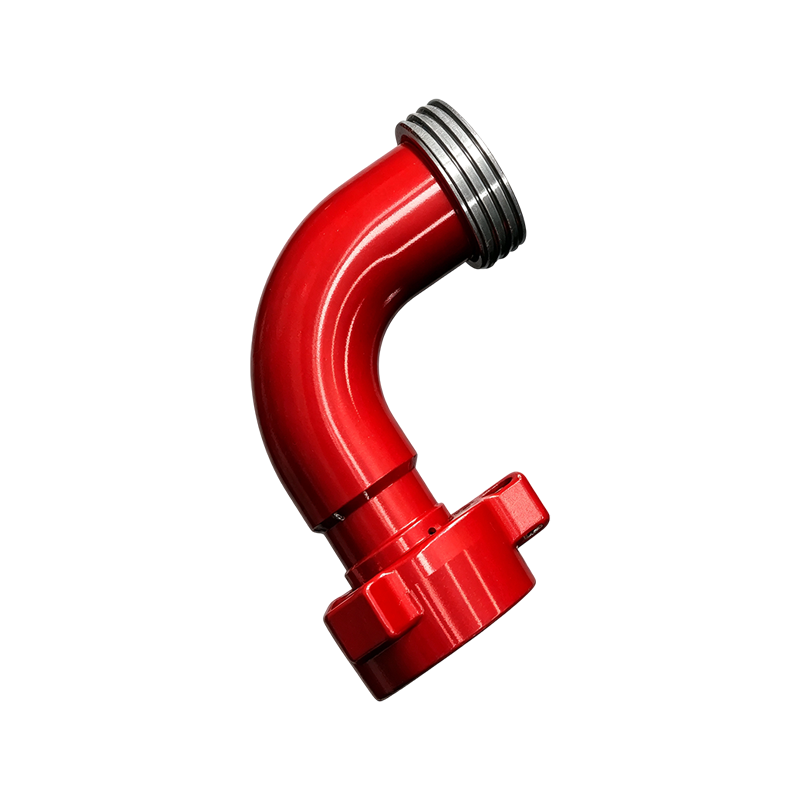

2" to 3" High-Pressure Integral Long Radius 90° Elbow Joint

Size: 2"、3"

Working pressure: 42MPa-105MPa(6000psi–15000psi)

Material: Alloy steel、Stainless steel

Contact Us
PREV：High-Pressure Integral L-Type 90° Elbow JointNEXT：FIG 602/1002/1502 High-Pressure Integral Y-Shaped Manifold Joint
  • Product Details
  • Parameter

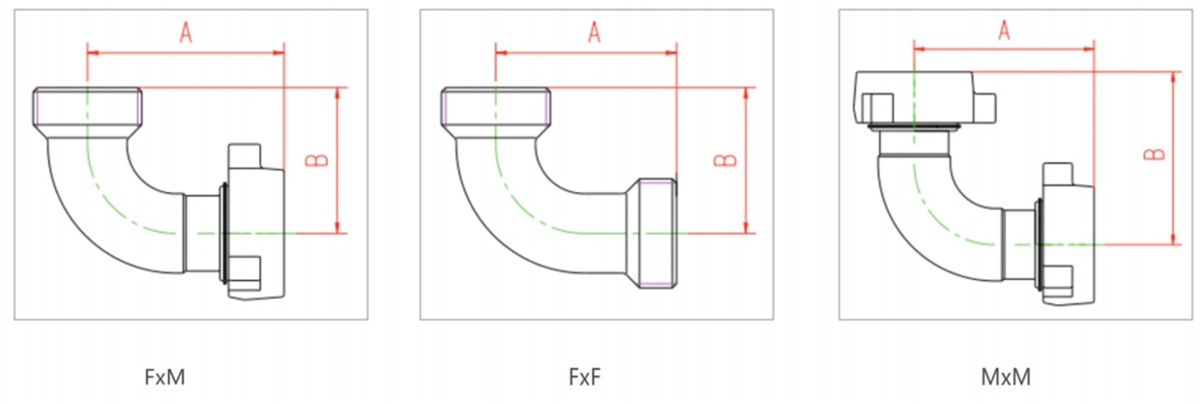

  • Product drawing

Technical Specifications & Configurations
This series provides comprehensive versatility, accommodating different connection needs and operational pressures as outlined below:
Size Range: Available in 2" and 3" specifications.
Pressure Ratings: Engineered for working pressures of 42MPa, 70MPa, and 105MPa.
Connection Options: Designed for various end configurations, including Female×Male (F×M), Female×Female (F×F), and Male×Male (M×M).
Standard Identifiers: Compatible with industry-recognized FIG numbers, specifically FIG602, FIG1002, and FIG1502 series.


Performance Benefits
Flow Optimization: The long-radius geometry minimizes pressure drop and internal wear, ensuring efficient fluid movement during heavy-duty operations.
Operational Flexibility: The variety of end connections allows for quick integration into existing pipeline networks and manifold assemblies.
Structural Reliability: As an integral, high-pressure component, it maintains seal integrity under fluctuating pressure cycles and harsh field conditions.
Versatile Application: Suitable for a broad spectrum of oilfield tasks, ranging from standard pumping lines to complex, multi-stage pressure systems.

Specification：2"

Specification：3"

Specification：2"

Specification：3"

Specification：2"

Specification：3"

Pressure:42MPa

Pressure:42MPa

Pressure:70MPa

Pressure:70MPa

Pressure:105MPa

Pressure:105MPa

FIG602(F×M)

FIG602(F×F)

FIG602(M×M)

FIG602(F×M)

FIG602(F×F)

FIG602(M×M)

FIG1002(F×M)

FIG1002(F×F)

FIG1002(M×M)

FIG1002(F×M)

FIG1002(F×F)

FIG1002(M×M)

FIG1502(F×M)

FIG1502(F×F)

FIG1502(M×M)

FIG1502(F×M)

FIG1502(F×F)

FIG1502(M×M)

Product
Name		 Specification Working
Pressure		 Dimensions
(mm)		 Type of Connection Weight
(kg)
A B
Long Radius 90°EIbow 2" 42MPa 162  171  FIG602(F×M) 10
162  171  FIG602(F×F) 7.8
162  171  FIG602(M×M) 12.2
3" 239  202  FIG602(F×M) 24.5
239  202  FIG602(F×F) 19.5
239  202  FIG602(M×M) 29.5
2" 70MPa 162  171  FIG¹002(F×M) 12.6
162  171  FIG1002(F×F) 11.8
162  171  FIG1002(M×M) 15.4
3" 239  202  FIG1002(F×M) 22.9
239  202  FIG1002(F×F) 15.8
239  202  FIG1002(M×M) 30
2" 105MPa 162  171  FIG1502(FxM) 12.6
162  171  FIG1502(F×F) 11.8
162  171  FIG1502(M×M) 15.4
3" 239  202  FIG1502(F×M) 22.9
239  202  FIG1502(F×F) 15.8
239  202  FIG1502(M×M) 30
