Wholesale FIG 602/1002/1502 High-Pressure Integral Y-Shaped Manifold Joint Factory

Home / Products / Spare Part / FIG 602/1002/1502 High-Pressure Integral Y-Shaped Manifold Joint

  • FIG 602/1002/1502 High-Pressure Integral Y-Shaped Manifold Joint
  • FIG 602/1002/1502 High-Pressure Integral Y-Shaped Manifold Joint

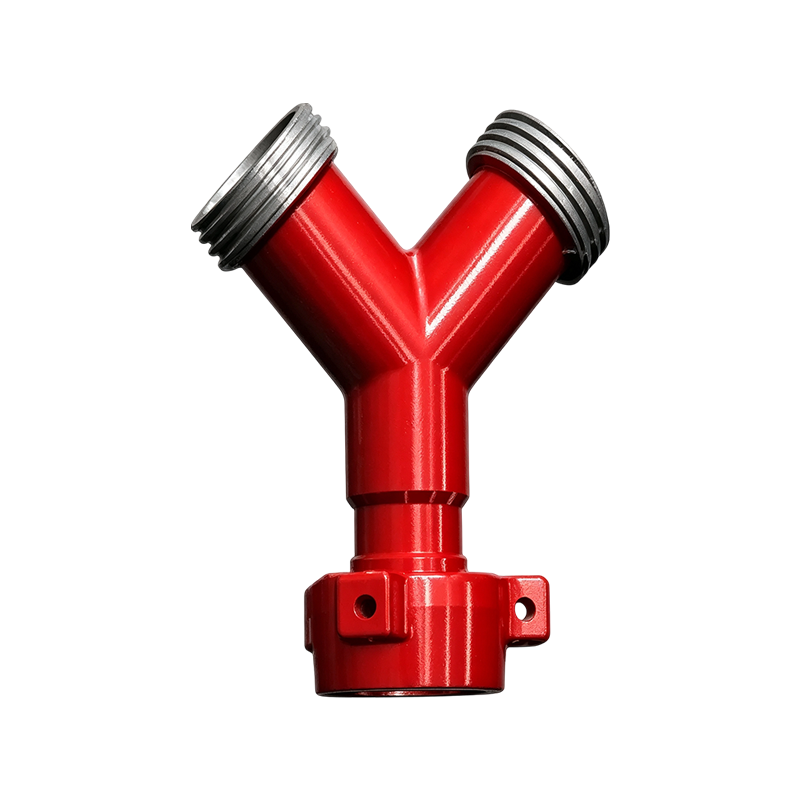

FIG 602/1002/1502 High-Pressure Integral Y-Shaped Manifold Joint

Size: 2"、3"

Working pressure: 42MPa-105MPa(6000psi–15000psi)

Material: Alloy steel、Stainless steel

Contact Us
PREV：2" to 3" High-Pressure Integral Long Radius 90° Elbow JointNEXT：FIG 602/1002/1502 Series 45° Lateral Manifold Joint Fitting
  • Product Details
  • Parameter

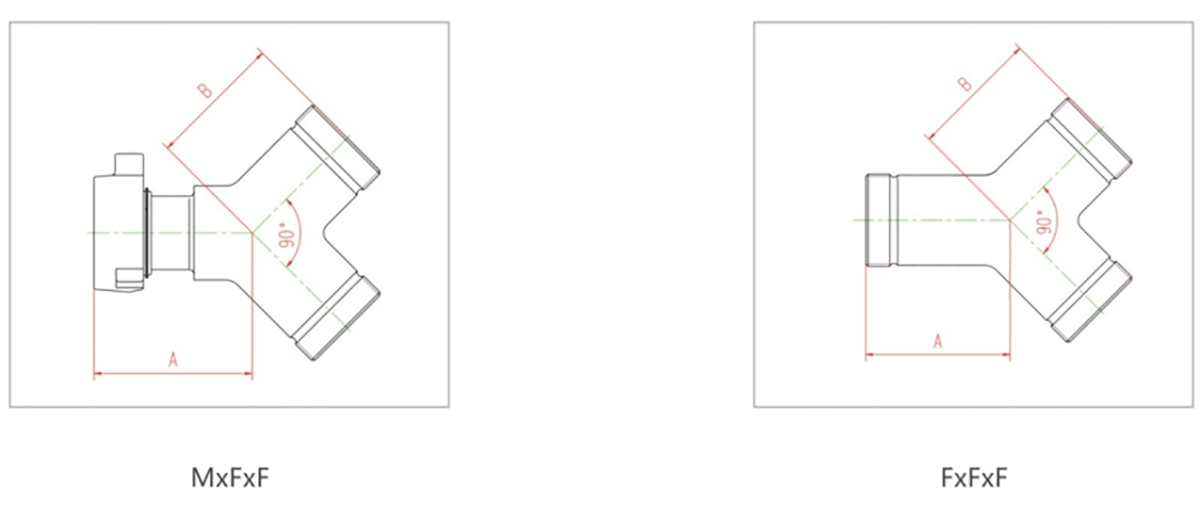

  • Product drawing

Technical Specifications and Configurations
This Y-type joint series offers extensive versatility to meet various operational requirements:
Size Options: Available in 2-inch and 3-inch specifications.
Pressure Ratings: Designed to handle working pressures of 42MPa, 70MPa, and 105MPa.
Industry Standards: These joints correspond to FIG 602, FIG 1002, and FIG 1502 series configurations.
Connection Types: The joints are available in M×F×F and F×F×F configurations to suit diverse piping setups.


Key Performance Benefits
Manifold Optimization: The Y-shaped geometry is ideal for splitting fluid streams and streamlining complex manifold assemblies.
Structural Integrity: As an integral component, it maintains durability and consistent performance under the extreme stress of high-pressure fluid transfer.
Deployment Flexibility: With multiple FIG series and connection formats available, these joints provide the adaptability needed for various rig-site pumping and servicing tasks.

Specification：2"

Specification：3"

Specification：2"

Specification：3"

Specification：2"

Specification：3"

Pressure:42MPa

Pressure:42MPa

Pressure:70MPa

Pressure:70MPa

Pressure:105MPa

Pressure:105MPa

FIG602(M×F×F)

FIG602(F×F×F)

FIG602(M×F×F)

FIG602(F×F×F)

FIG1002(M×F×F)

FIG1002(F×F×F)

FIG1002(M×F×F)

FIG1002(F×F×F)

FIG1502(M×F×F)

FIG1502(F×F×F)

FIG1502(M×F×F)

FIG1502(F×F×F)


Product
Name		 Specification Working
Pressure		 Dimensions
(mm)		 Type of Connection Weight
(k g)
A B
Y-Type Joint 2" 42MPa 133  127  FIG602(M×F×F) 12.2
133  127  FIG602(F×F×F) 10
3" 197  190  FIG602(M×F×F) 33.5
197  190  FIG602(FxF×F) 28.5
2" 70MPa 133  127  FIG1002(M×F×F) 12.7
133  127  FIG1002(F×F×F) 10.5
3" 197  190  FIG1002(M×F×F) 35.2
197  190  FIG1002(FxF×F) 30.5
2" 105MPa 133  127  FIG1502(M×F×F) 12.7
133  127  FIG1502(F×F×F) 10.5
3" 197  190  FIG1502(M×F×F) 35.2
197  190  FIG1502(FxF×F) 30.5
