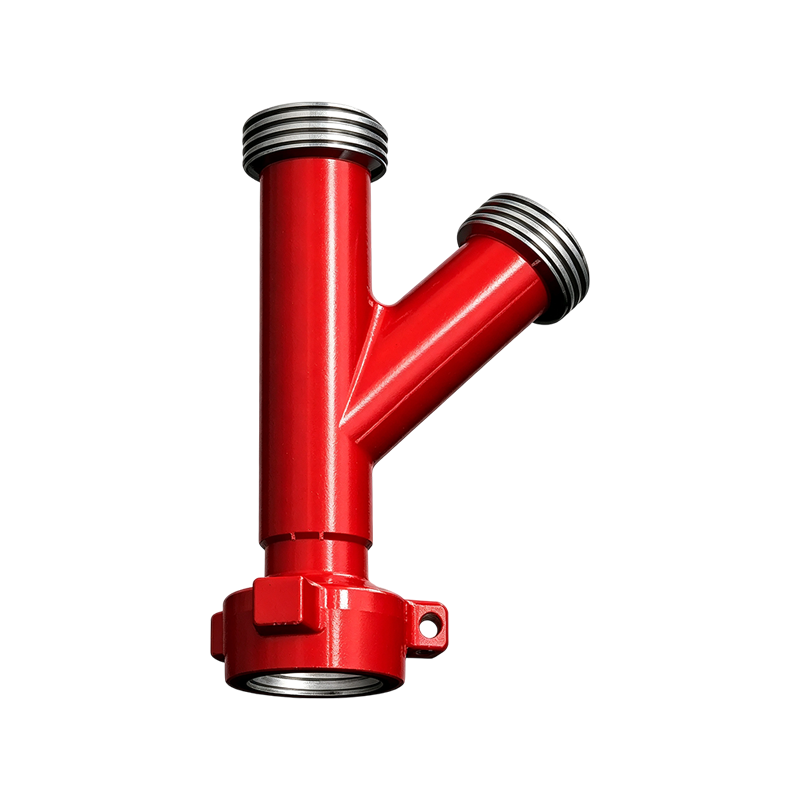

FIG 602/1002/1502 Series 45° Lateral Manifold Joint Fitting

Size: 2"、3"

Working pressure: 42MPa-105MPa(6000psi–15000psi)

Material: Alloy steel、Stainless steel

Contact Us
PREV：FIG 602/1002/1502 High-Pressure Integral Y-Shaped Manifold JointNEXT：Multi-Port Integral Cross Joint for Heavy Duty Pipeline Flow Splitter
  • Product Details
  • Parameter

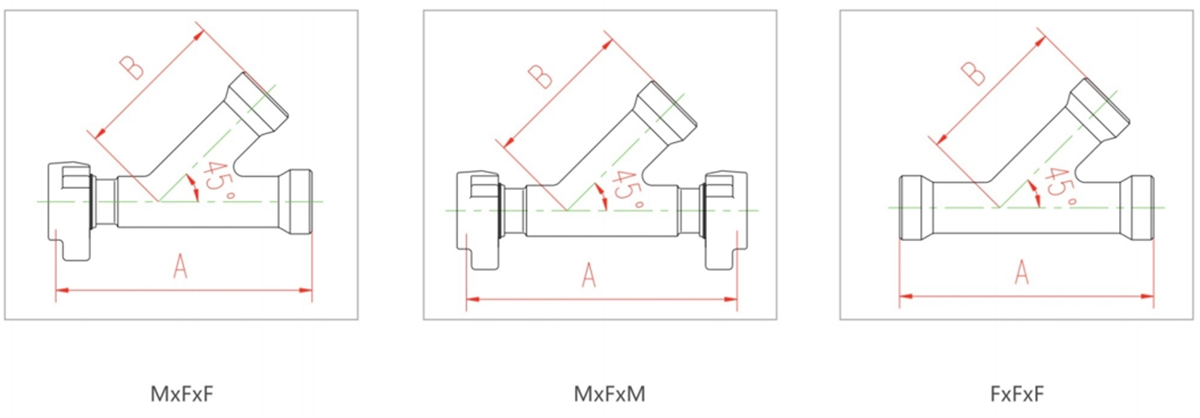

  • Product drawing

Technical Specifications
Dimensional Range: Available in 2-inch and 3-inch bore sizes.
Pressure Capabilities: Engineered for demanding environments with rated working pressures of 42MPa, 70MPa, and 105MPa.
Configuration Diversity: Offered in multiple connection types, including M×F×F, M×F×M, and F×F×F, to integrate seamlessly into diverse pipeline arrays.
Standardized Compatibility: Fully compatible with FIG 602, FIG 1002, and FIG 1502 industrial series requirements.


Operational Advantages
Manifold Versatility: The 45-degree angle allows for cleaner, more efficient routing of high-pressure fluid lines compared to standard T-junctions, reducing turbulence in critical manifold assemblies.
High-Pressure Reliability: Constructed to withstand the rigorous pressure cycling of heavy-duty pumping and maintenance tasks without compromising sealing integrity.
Installation Adaptability: The wide variety of available end-connection patterns ensures simplified field setup and rapid adaptation to specific rig-site piping requirements.

Specification：2"

Specification：3"

Specification：2"

Specification：3"

Specification：2"

Specification：3"

Pressure:42MPa

Pressure:42MPa

Pressure:70MPa

Pressure:70MPa

Pressure:105MPa

Pressure:105MPa

FIG602(M×F×F)

FIG602(M×F×M)

FIG602(F×F×F)

FIG602(M×F×F)

FIG602(M×F×M)

FIG602(F×F×F)

FIG1002(M×F×F)

FIG1002(M×F×M)

FIG1002(F×F×F)

FIG1002(M×F×F)

FIG1002(M×F×M)

FIG1002(F×F×F)

FIG1502(M×F×F)

FIG1502(M×F×M)

FIG1502(F×F×F)

FIG1502(M×F×F)

FIG1502(M×F×M)

FIG1502(F×F×F)

Product
Name		 Specification Working
Pressure		 Dimensions
(mm)		 Type of Connection Weight
(kg)
A B
Manifold Joint 2" 42MPa 400  250  FIG602(M×F×F) 21.5
400  250  FIG602(M×F×M) 23.7
400  250  FIG602(F×F×F) 19.3
3" 533  355  FIG602(M×F×F) 40.1
533  355  FIG602(M×F×M) 45.1
533  355  FIG602(FxF×F) 35.1
2" 70MPa 400  250  FG1002(M×F×F) 24.5
400  250  FIG1002(M×F×M) 26.7
400  250  FIG1002(FxF×F) 22.3
3" 533  355  FIG1002(M×F×F) 43.1
533  355  FIG1002(M×F×M) 48.1
533  355  FIG1002(FxF×F) 38.1
2" 105MPa 400  250  FIG1002(M×F×F) 24.5
400  250  FIG¹002(M×F×M) 26.7
400  250  FIG1002(F×F×F) 22.3
3" 533  355  FIG¹002(M×F×F) 43.1
533  355  FIG¹002(M×F×M) 48.1
533  355  FIG1002(F×F×F) 38.1
