Wholesale Oilfield Pipeline 2" to 4" Long Radius Bend 100 Swivel Joint Factory

Home / Products / Spare Part / Oilfield Pipeline 2" to 4" Long Radius Bend 100 Swivel Joint

  • Oilfield Pipeline 2
  • Oilfield Pipeline 2

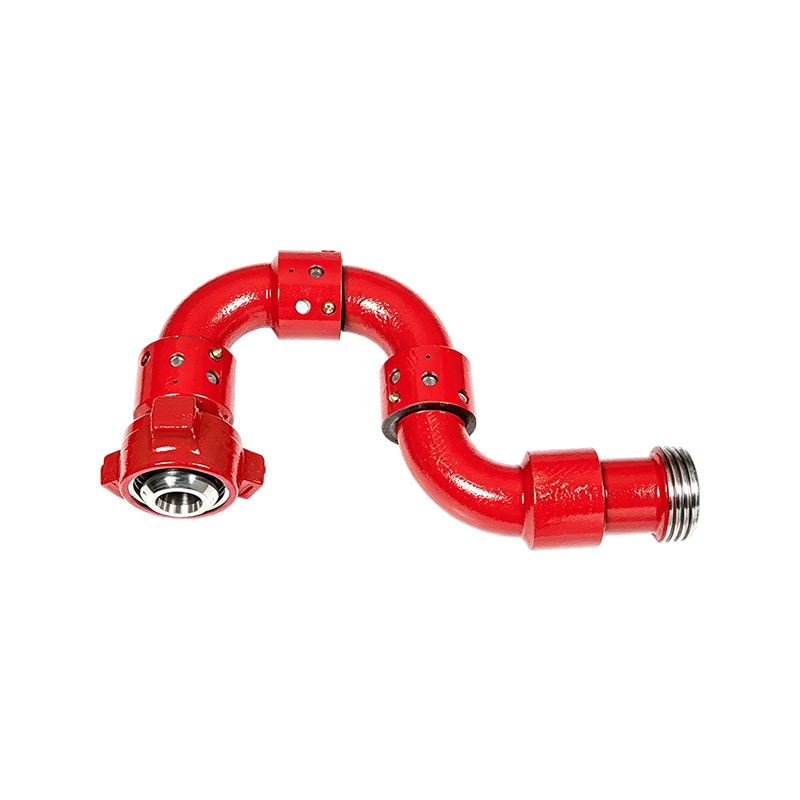

Oilfield Pipeline 2" to 4" Long Radius Bend 100 Swivel Joint

Sizes: 2"、3"、4"

Working pressure: 42MPa-105MPa(6000psi–15000psi)

Material: Alloy steel、Stainless steel

Contact Us
PREV：6000psi to 15000psi 2" to 4" Long Radius Bend 80 Swivel JointNEXT：Swivel Joint Repair Kit for 2" to 4" High-Pressure Elbows
  • Product Details
  • Parameter
  • Product drawing

Performance Features
Dynamic Flow Control: The sophisticated swivel assembly allows for effortless, variable orientation of pipeline segments, reducing mechanical strain on connected conduits.
Space-Efficient Geometry: Designed with a compact and lightweight footprint, it simplifies logistics and installation in crowded rig layouts or portable service equipment.
Exceptional Sealing Performance: Precision-machined to ensure a secure, leak-free environment, effectively mitigating the risks associated with high-pressure fluid transfer.
Field-Proven Reliability: Crafted for durability and sustained safety, ensuring long-term operational success even under aggressive pressure cycling.
Quick-Response Connection: Features an intuitive design that facilitates rapid assembly and disassembly, maximizing productivity during critical downtime windows.


Core Applications
Rig-Site Maintenance: Serves as a fundamental pipe junction for workover and well-completion equipment requiring flexible positioning.
Abrasive Sand Washing: Specifically fortified to maintain internal sealing and structural performance while managing the high-pressure fluid velocities found in sand washing procedures.
High-Pressure Pipeline Infrastructure: Ideal for mobile pumping stations and complex piping arrays where secure, movable, and pressure-resistant connections are paramount.

2"FG602(F×M)

3"FG602(F×M)

4"FG602(F×M)

 42MPa

2"FG1002(F×M)

3"FG1002(F×M)

4"FG1002(F×M)

 70MPa

2"FIG1502(F×M)

2"FIG1502(M×M)

3"FIG1502(F×M)

 105MPa

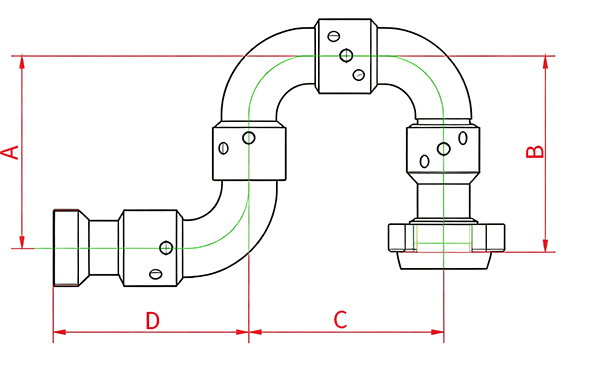

Product Name Specification Working
Pressure		 Type of
Connection
Dimensions
(mm)		 Weight
(k g)		 Use
Conditions
A B C D
Radius Bend Swivel Joints 2" 42/6000 FIG602(F×M) 273  277  273  279  33.7  standard
3" FIG602(F×M) 416  368  416  368  74.3  standard
4" FIG602(F×M) 408  406  408  327.5  94.8  standard
2" 70/10000 FIG1002(F*M) 273  277  273  279  37.5  standard
3" FIG1002(F*M) 416  368  416  368  76.1  standard
4" FIG1002(F*M) 408  406  408  327.5  98.5  standard
2" 105/15000 FIG1502(F*M) 273  277  273  279  37.5  standard
2" FIG1502( M*M) 273  277  273  279  40.7  standard
3" FIG1502(M*F) 416  368  416  368  76.1  standard
