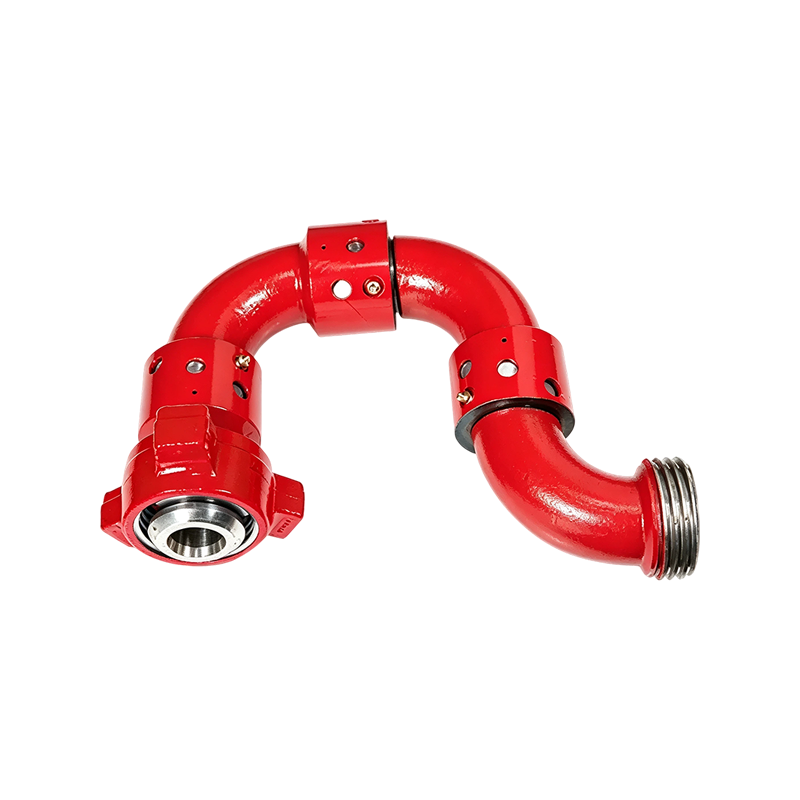

6000psi to 15000psi 2" to 4" Long Radius Bend 80 Swivel Joint

Sizes: 2"、3"、4"

Working pressure: 42MPa-70MPa(6000psi–10000psi)

Material: Alloy steel、Stainless steel

Contact Us
PREV：2" to 4" Long Radius Bend 50 Swivel Joint for High-Pressure Oilfield EquipmentNEXT：Oilfield Pipeline 2" to 4" Long Radius Bend 100 Swivel Joint
  • Product Details
  • Parameter
  • Product drawing

Technical Characteristics
Rotational Flexibility: The advanced swivel mechanism enables smooth, variable-angle adjustments, simplifying the alignment of complex high-pressure hose and pipe assemblies.
Compact Durability: Engineered with a streamlined, lightweight profile that maximizes installation space efficiency without sacrificing heavy-duty performance.
Leak-Proof Integrity: Features precision-machined sealing surfaces that ensure absolute containment and prevent pressure loss during high-velocity fluid transfer.
Rapid Deployment: Specifically designed for quick-connect capability to accelerate rig-up and rig-down sequences in fast-paced field operations.
High-Pressure Resilience: Built from high-strength alloys to ensure absolute reliability and operator safety during severe high-pressure service conditions.


Primary Applications
Wellbore Service Lines: Essential for configuring discharge and suction piping in workover and completion rigs.
High-Pressure Sand Washing: Engineered to manage the fluid dynamics and vibration profiles common in oilfield sand cleaning and wellbore maintenance.
Industrial Fluid Handling: A versatile component for any surface equipment or mobile unit requiring a flexible, high-pressure, and secure metal-pipe connection.

2"FG602(F×M)

3"FG602(F×M)

4"FG602(F×M)

 42 MPa

2"FG1002(F×M)

3"FG1002(F×M)

4"FG1002(F×M)

2"FIG1502(F×M)

3"FIG1502(F×F)

4"FIG1502(F×M)

 75 MPa

Product
Name		 Specification Working
Pressure		 Type of
Connection
Dimensions
(mm)		 Weight
(kg)		 Use
Conditions

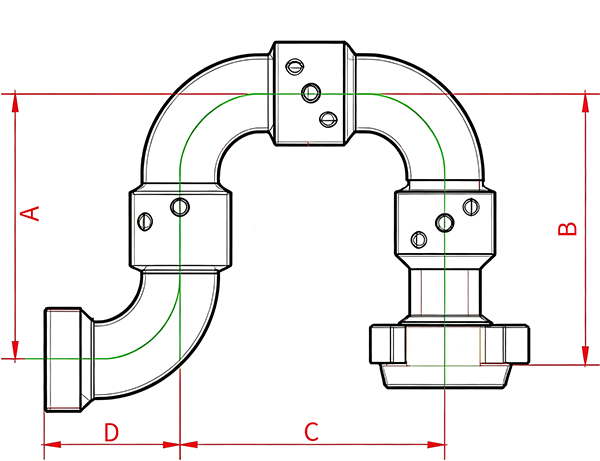

A B C D
Long Radius Bend Swivel Joints 2" 42/6000 FIG602(F×M) 277  277  273  140  34.2  standard
3" FG602(FxM) 416  368  416  202  62.1  standard
4" FIG602(F×M) 406  406  408  236  80.5  standard
2" 70/10000 FIG1002(FxM) 277  277  273  140  36.5  standard
3" FIG1002(FxM) 416  368  416  202  65.9  standard
4" FIG1002(F×M) 406  406  408  236  85.3  standard
2" FIG1502(FxM) 277  277  273  140  36.5  standard
3" FIG1502(FxF) 416  368  416  202  65.9  standard
4" FIG1502(F×M) 406  406  408  236  85.3  standard
