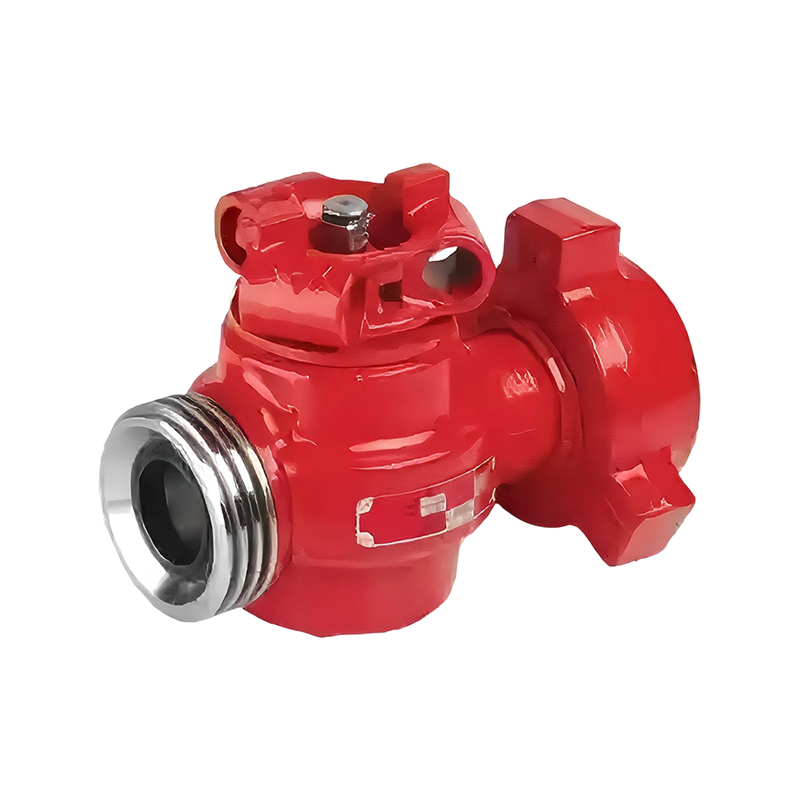

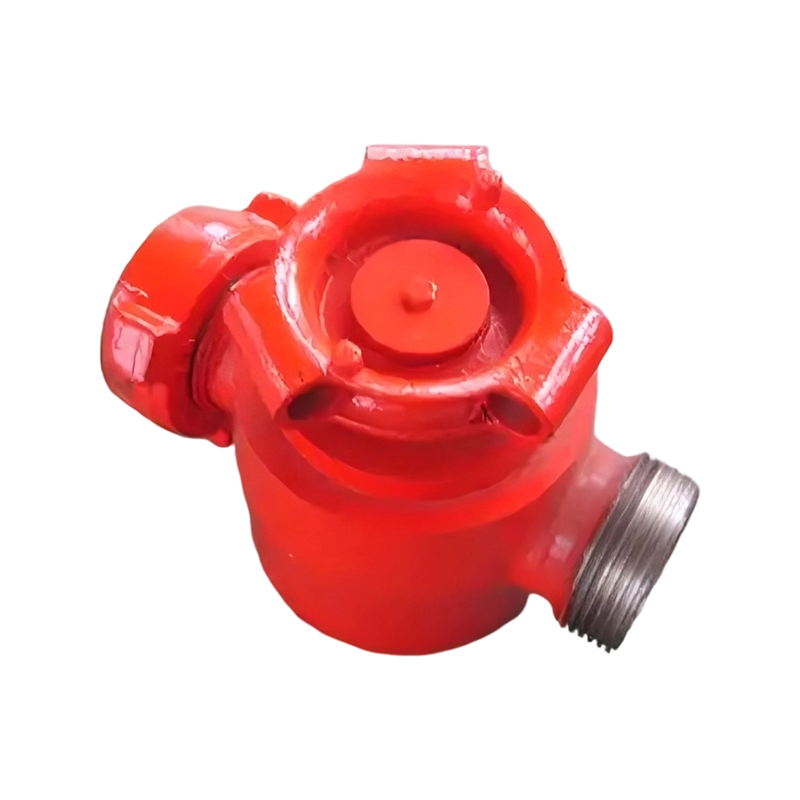

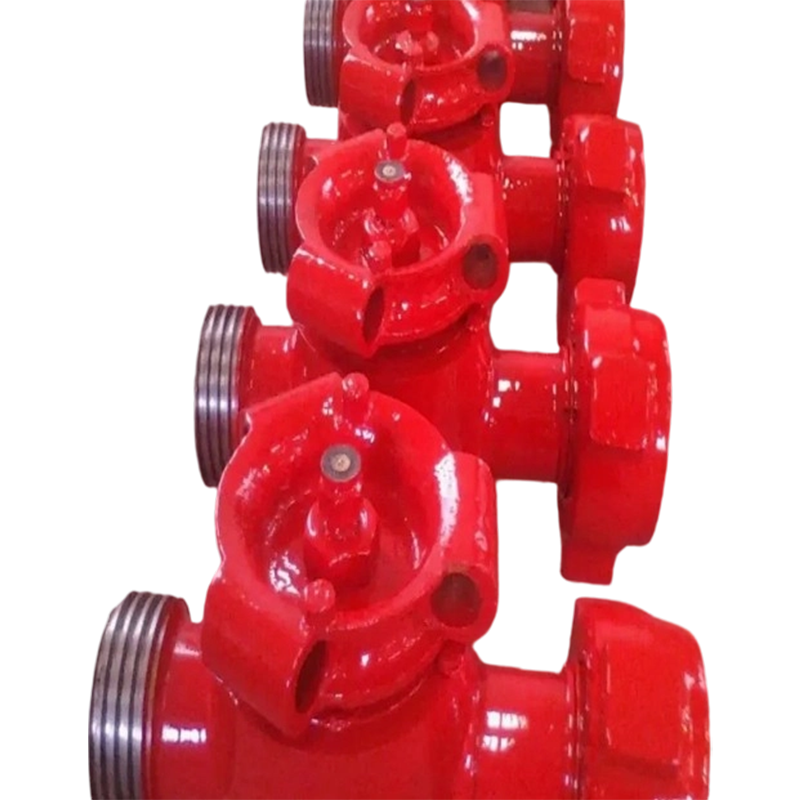

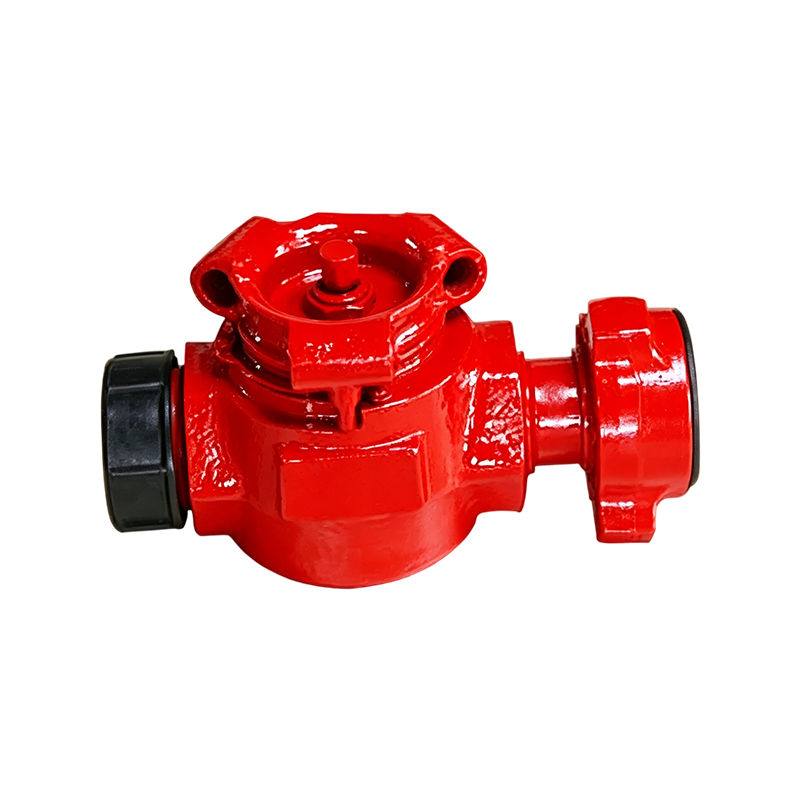

High Pressure Plug Valve

Working pressures:
42MPA、70MPA、105MPA(6000PSI、10000PSI、15000PSI)

Material: Alloy steel、Stainless steel、Carbon steel

Sizes: 2"、3"

Type of Connection:
FIG602(M×F) FG1002(M×F) FIG1502(M×F) FG1502(M×F)

Contact Us
PREV：High-Pressure Circulating Hose Loops for OilfieldNEXT：42MPa to 105MPa 2" to 4" Long Radius Bend 10 Swivel Joint
  • Product Details
  • Parameter
  • Product drawing

Design  Features:

  • The maintenance and maintenance of the valve body does not need to be removed from the pipeline, and special tools are not required when dismantling, and online maintenance can be achieved.
  • Special coating process is adopted to make the wear resistance and corrosio resistance excellent.
    ● Clear switch identification and limit mechanism
    ● A variety of opening devices for choice
    ●  Has a low torque performance,flexible operation of portable
    ●  Special sealing grease has dual functions of lubrication and sealing

Technical Date:

 Working pressure

 42MPa-105MPa

Nominal diameter

 2”-3”

Working temperature

 -29℃-121℃(PU level)

The suitable operating mode

 Standard, low humidity and H, S conditions

Product Name Specifcation Working Pressure Dimensions(mm) Type of Connection Actuator Weight
L A H
High Pressure Plug Valve Union Connection 2" 42MPa 353  88  225.5  FIG602(M×F) Manual operation 42.2
3" 432  103  254  FIG602(M×F) Manual
operation		 108
2" 70MPa 353  88  225.5  FG1002(M×F) Manual
operation		 42.2
3" 432  103  254  FIG1002(M×F) Manual
operation		 108
2" 105MPa 353  88  225.5  FIG1502(M×F) Manual
operation		 42.2
353  88  1  FG1502(M×F) Pneumatic
operation		 42.2
353  100  409  FG1502(M×F) Hydraulic
operation		 84
3" 432  103  254  FIG1502(M×F) Manual
operation		 108
432  103  630  FIG1502(M×F) Turbine rod 131
432  103  1  FG1502(M×F) Pneumatic
operation		 141
432  103  1  FIG1502(M×F) Hydraulic
operation		 153
High Pressure Plug Valve Threaded Connection 2" 42MPa 218  76.5  198.3  2"LP
  male screw		 Manual
operation		 37
3" 316  110  314.5  3"LP
internal screw		 Manual
operation		 82
2" 70MPa 218  76.5  198.3  2"TBG
internal screw		 Manual
operation		 31
3" 316  110  314.5  3"LP
internal screw		 Manual
operation		 82
