TWS2250 Robust‑Design Deep‑Well Triplex High‑Pressure Injection Pump

Product Overview

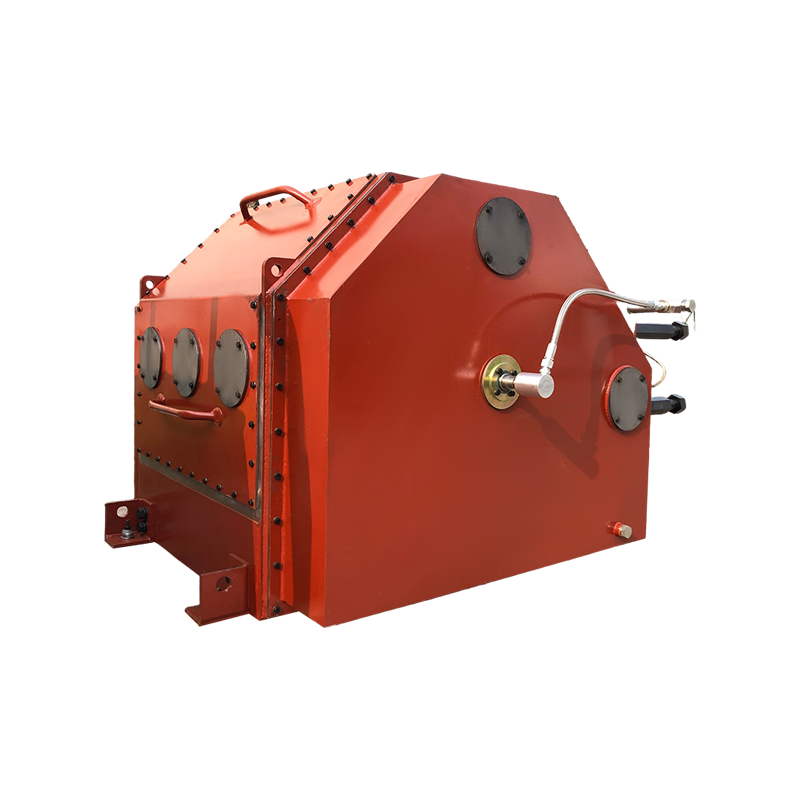

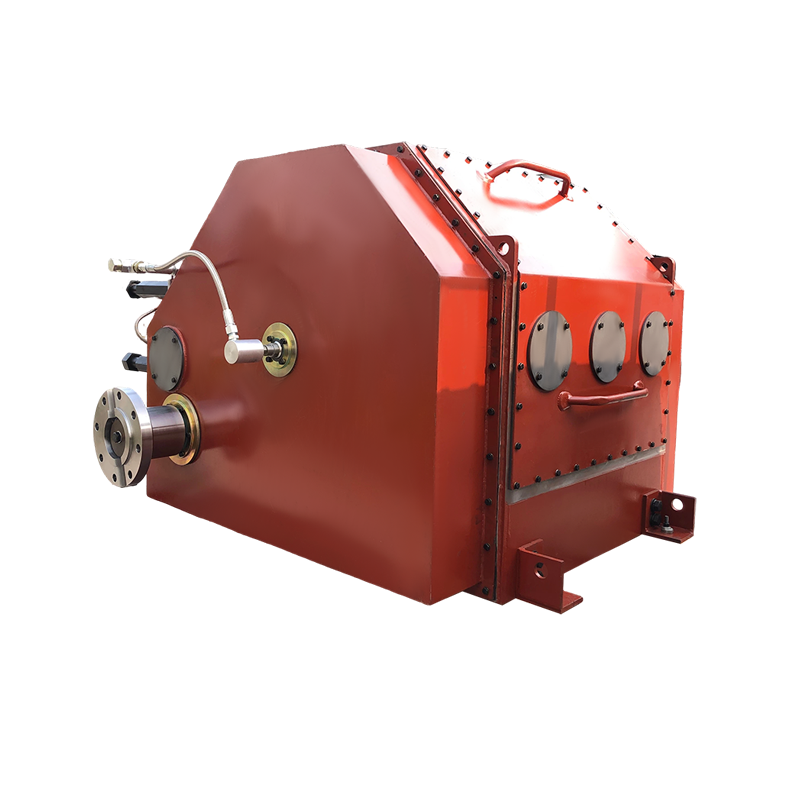

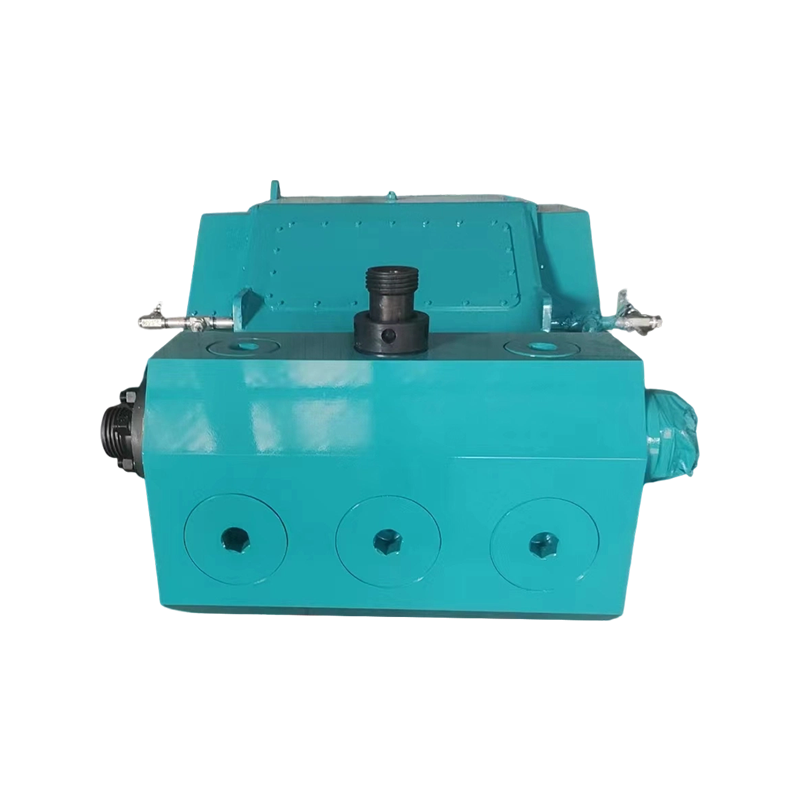

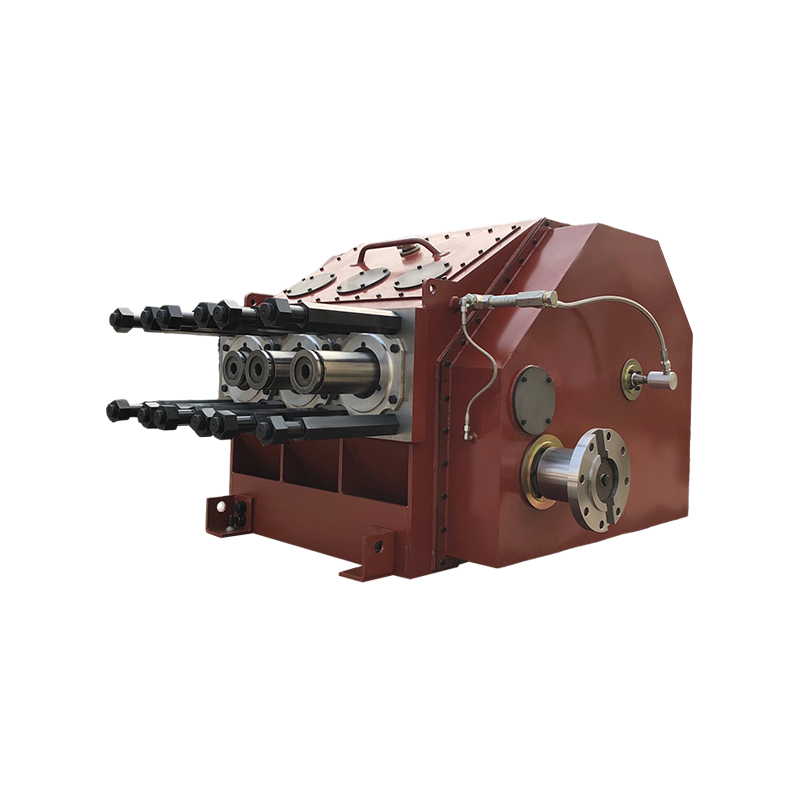

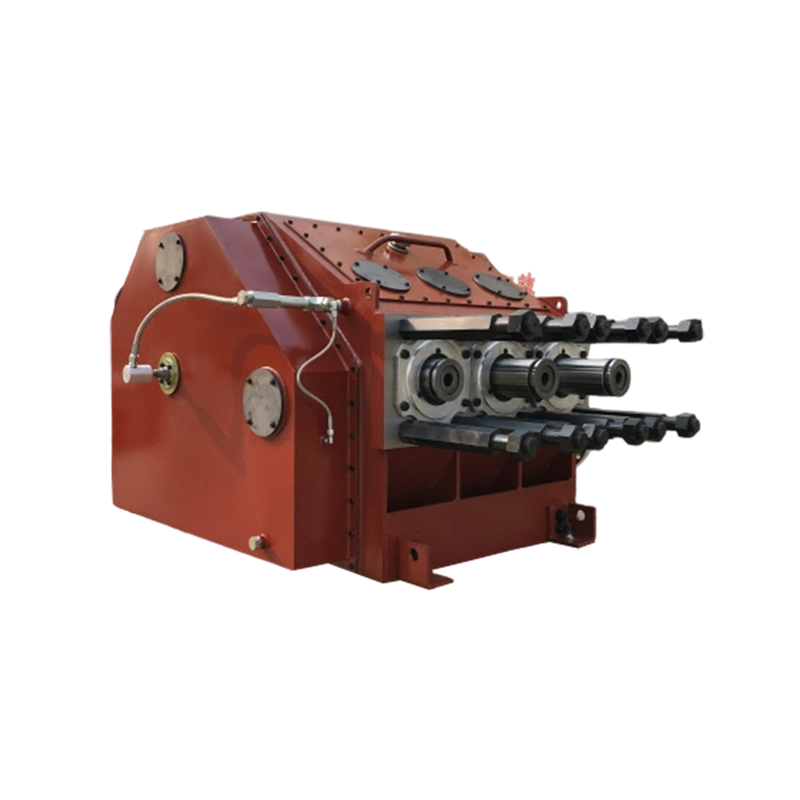

The TWS2250 Triplex Pump is a heavy‑duty high‑pressure three‑plunger pump for oilfield fracturing. It features an 8‑inch stroke with a gear ratio of 6.353:1, maximum input power of 2,250 BHP (1865 KW), and max rod load of 225,000 lbs. It weighs approx. 11,755 lbs, with overall dimensions of 89.9"×59.8"×44.4".

Contact Us
PREV：High Pressure Quintuplex Pump QWS1000 Wear Parts for Hydraulic FracturingNEXT：QWS2500 High‑Pressure Heavy‑Duty Quintuplex Fracturing Pump
  • Product Details
  • Parameter
  • Product drawing

Key Features & Advantages
High power output and heavy load‑bearing capacity, stable under long‑term high‑pressure fracturing conditions.
Optimized gear ratio for efficient power transmission and low energy consumption.
Compact heavy‑duty structure, strong pressure resistance, suitable for harsh oilfield working environments.


Primary Applications
Applied in onshore deep‑well fracturing and water injection, capable of adapting to complex high‑pressure environments in oil‑gas extraction.

Stroke Length

 8"(203 mm)

Maximum Input

 2,250 BHP(1, 865 kw)

Maximum RPM

 330 RPM

Max. Rod Load

 225,000 lbs, (102,060 kg)

Pump Weight

 12,650 lbs. (5,738 kg)

Gear Ratio

 6.353:1

Approx. Length

 89.9" (2,285 mm)

Approx. Width

 59.8" (1,520 mm)

Approx. Height

 44.4" (1, 128 mm)

Approx. Weight

 11,755 lbs. (5,340 kg)

Application

 Fracturing
